Asco 8212A037L1100F1

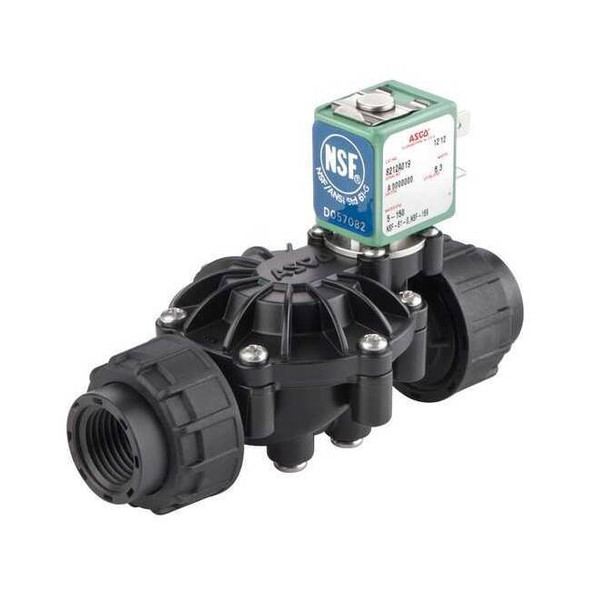

The ASCO 8212A037L1100F1 solenoid valve is a pilot-operated, normally closed, 2-way/2-position valve designed for controlling the flow of water in water conditioning and purification systems. Constructed with a polymide polyphenylene ether body and EPDM seals, it includes the coil required for operation. This valve provides automated flow control with a 3/4 inch orifice diameter and nominal pipe size, operating at 24V DC with a wattage of 6.9 W. Environmental Rating: Indoor, NEMA 4X, IP65. It supports a fluid temperature up to 150°F. Key Features: - Valve Design: 2-Way/2-Position, normally closed - Body Material: Polymide Polyphenylene Ether - Seal Material: EPDM - Orifice Diameter: 3/4 in - Nominal Pipe Size: 3/4 in - Operating Pressure Differential: 5 to 150 psi for water, air/inert gas, and light oil - Voltage: 24V DC - Wattage: 6.9 W - Coil Enclosure: Sealed; Class F insulation - Electrical Connections: Leaded coil with 1/2 in NPT threaded conduit adaptor - Environmental Rating: Indoor, NEMA 4X, IP65 - Includes: Coil and seal - Compliance: UL, CSA, NSF 42, 61, 169, 372 - Physical Dimensions: 5-3/16 in length, 3-5/8 in height, 2-5/8 in width
