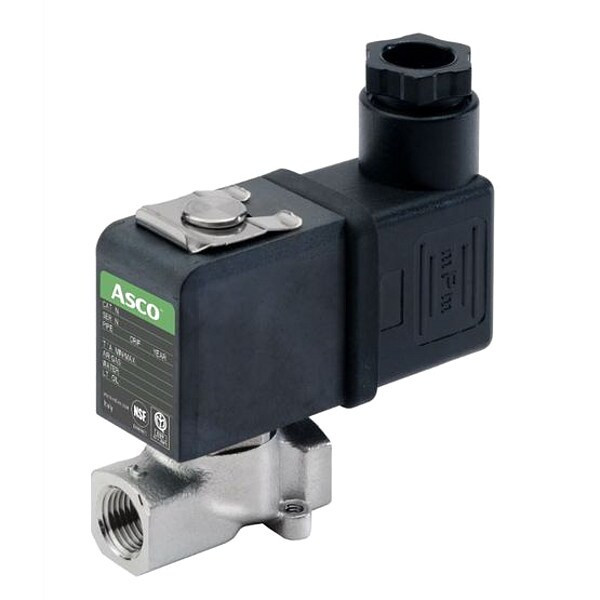

Asco SC8256B046V

Valve type: direct-acting; configuration: 2-way/2-position; media compatibility: Air, Inert Gas, Light Oil, Water. Media compatibility: Air, Inert Gas, Light Oil, Water. The valve includes a coil and seal, supports both horizontal and vertical mounting orientations; environmental rating: Indoor. The valve body is constructed of stainless steel, and it operates at a nominal pipe size of 1/8 inch with an orifice diameter of 1/8 inch, providing a Cv of 0.19 for flow control. Electrical specifications include 120V AC at 60 Hz with a coil wattage of 6.3 W. Response time: 20 ms. The valve has a maximum fluid temperature rating of 180°F. Key Features: - Valve Design: 2-Way/2-Position, Normally Closed - Operation Type: Direct Acting - Body Material: Stainless steel - Media Compatibility: Air, Inert Gas, Light Oil, Water - Connection Type: Inlet and Outlet - NPTF, Thread Type - NPT - Nominal Pipe Size: 1/8 in; Orifice Diameter: 1/8 in; Center Line Pipe Center Size: 1-13/16 in - Operating Pressure Differential Maximum: 135 psi Air/Inert Gas, 80 psi Light Oil, 126 psi Water; Minimum: 0 psi - Coil enclosure: Watertight; junction box: not included; Coil Insulation Class: F; Electrical Connections: DIN - Mounting Orientation: Horizontal or Vertical - Environmental rating: Indoor; NEMA Enclosure Rating: 4, 4X; IP Rating: 66 - Includes Coil and Seal - Response time: 20 ms - Seal Material: FKM - Overall Dimensions: Length 1-13/16 in, Width 1 in, Height 2 in - Wattage: 6.3 W; Voltage: 120V AC; Frequency: 60 Hz - Certifications: CSA, NSF, UL Listed
