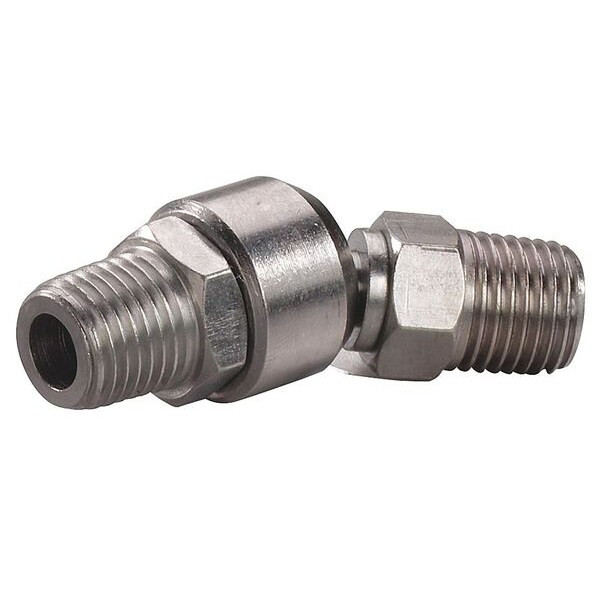

Speedaire Swivel Connector,1-4 30E593

The SPEEDAIRE - 30E593 is a swivel connector designed for use with pneumatic tools and tubing lines. It serves as a quick-connect hose fitting that allows the hose or attached tool to rotate freely relative to the fixed coupling. This rotation capability helps provide a 360° ball-joint swivel with a 25° pivot angle to allow relative rotation between the connected hose and coupling. The connector maintains an air-tight connection when installed using compatible fittings and rated within a maximum working pressure of 150 psi at 70°F within a temperature range of -20°F to 150°F. Key Features: - Body size and thread size: 1/4" - Connection type: Male NPT inlet and outlet, both 1/4" NPT - Material: Steel body with chrome-plated finish - Seal material: NBR (nitrile rubber) - Swivel type: 360° ball-joint swivel with one pivot point and a 25° pivot angle - Overall length: 2.20 inches - Maximum working pressure at 70°F: 150 psi - Temperature rating: -20°F to 150°F operating range
