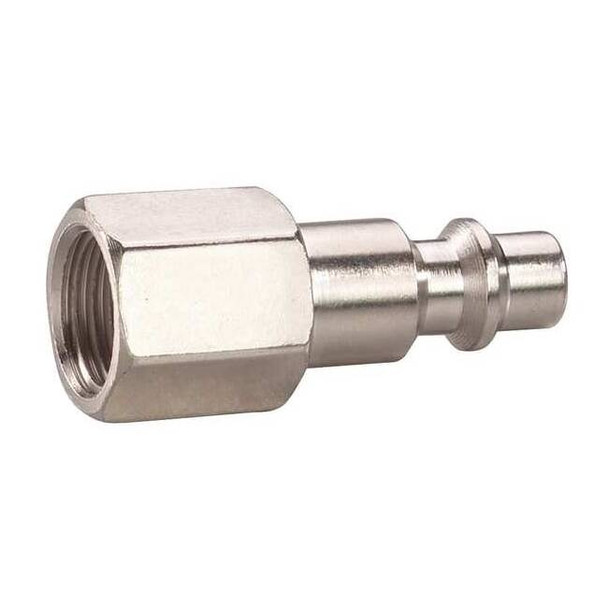

Speedaire 30E545

The SPEEDAIRE - 30E545 is designed for tool-free coupling and decoupling of hoses at the inlet/outlet of pneumatic and fluid line equipment. It is intended for use on hose/tool inlet connections in pneumatic and fluid line applications, connecting with industrial interchange couplers. This coupling features a push/pull locking mechanism to form a sealed connection when installed and used within specified pressure/temperature and with compatible coupler components, compatible with compressed air and fluids when used with compatible couplers and within specified pressure/temperature limits. Constructed from 304 stainless steel; rated for operation from -40°F to 150°F. It meets ISO 6150 and MIL-C-4109F specifications for this model/coupling. Key Features: - Hose fitting gender: Female - Coupling size and hose fitting size: 1/4 in - Body size: 1/4 in quick connect air coupling - Connection type: NPT with 1/4" -18 thread size - Seal material: Buna-N - Maximum flow rate: 1,132.67 liters per minute (measured under specified flow conditions) - Maximum working pressure at 70°F: 300 psi (for use within specified pressure conditions) - Interchange type: Industrial - Does not include a valve - Not barbed
