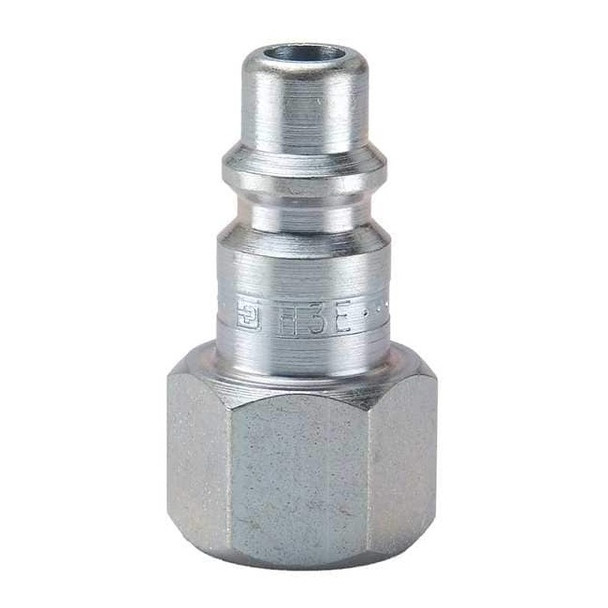

Parker Coupler Plug,Steel,FNPT,1-4 In. Pipe H3C

The PARKER - H3C is a quick connect hose coupling designed for pneumatic applications. It facilitates rapid, tool-free attachment and detachment of hoses or equipment through a push/pull or twist locking mechanism. Manufactured from steel with a trivalent chrome finish, this plug-style coupling features a female 1/4 inch hose fitting and NPT connection type. It is intended to form a sealed connection when properly installed and used within the specified pressure and temperature ratings and maximum rated flow: 707.92 lpm; maximum rated working pressure: 300 psi (at 70°F). The fitting operates within a temperature range of -40°F to 250°F and conforms to the Industrial interchange standard. Key Features: - Application: Pneumatic use- Coupling component: Plug- Body size: 1/4 in- Hose fitting gender: Female- Hose fitting size: 1/4 in- Connection type: NPT- Maximum flow rate: 707.92 lpm- Maximum working pressure @ 70°F: 300 psi- Operating temperature range: -40°F to 250°F- Finish: Trivalent Chrome- Material: Steel- Overall length: 1.56 in- Maximum outside diameter: 3/4 in- Thread size: 1/4"-18- Interchange type: Industrial- Barbed: No- Includes valve: No
