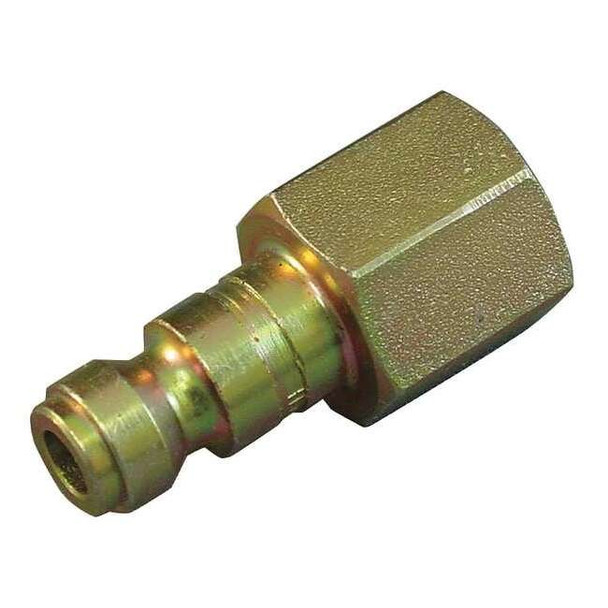

Hansen Quick Connect,Plug,3-8" Body,3-8"-18 31AP37F

The HANSEN - 31AP37F is a quick connect hose coupling designed for connection and disconnection without requiring a separate tool. It is compatible with air tools, construction, and general pneumatic applications, designed to form a sealed connection using the specified seal material (Nitrile). This coupling features a sleeve locking mechanism that provides a locking connection using the sleeve locking mechanism and allows for quick release to help support faster hose changes compared to uncoupled connections without a locking mechanism. - Material: Steel construction with zinc-plated finish for corrosion resistance. - Connection Type: (Female) NPT thread with a 3/8"-18 thread size. - Coupling Size: 3/8 in body size with a hose fitting size of 1/4 in and female hose fitting gender. - Includes a plug coupling component; no integrated valve is included. - Seal Material: Nitrile for fluid-tight sealing. - Maximum Flow Rate: 1,274.25 liters per minute. - Maximum Working Pressure: 1,000 psi at 70°F. - Temperature Range: Operates between -40°F to 250°F. - Dimensions: Overall length of 1.81 in and max outside diameter of 0.81 in. - Interchange Type: Industrial standard compatible with Tru-Flate and 400 series fittings. - Barbed: No barbed hose tail present.
