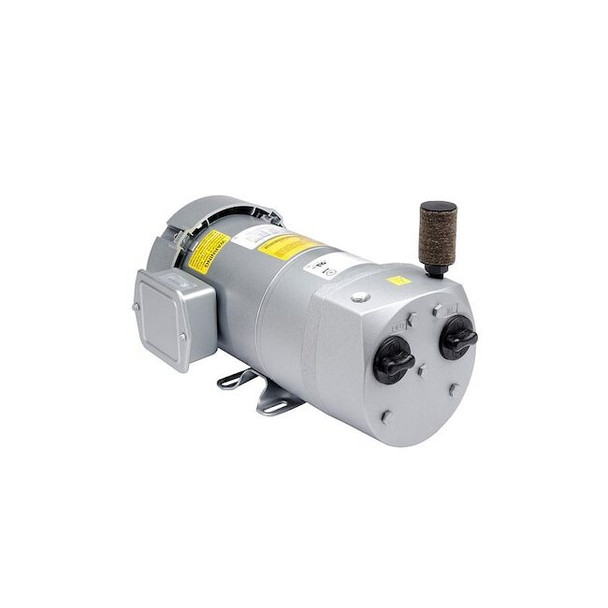

Gast At05-101-G215Dx Rotary Vane Pump AT05-101-G215DX

The GAST - AT05-101-G215DX is a rotary vane vacuum pump rated for continuous operation at vacuum up to 24 in Hg. It features a grey iron enclosure and housing, operates on a single-phase 115V AC power supply with a power consumption of 0.19 kW and delivers 0.25 hp output power. The pump has an inlet and outlet both sized at 1/4 in with female NPT connections and includes thermal protection to guard against overheating. With a maximum operating temperature of 104°F and a minimum operating temperature of 33.8°F, Operating temperature range: 33.8°F to 104°F. The pump's sound level is rated at 60 dBA and it weighs 31 lb. Key Features: - Pump Type: Rotary Vane - Maximum Vacuum: 24 in Hg - Power Source: Corded Electric, 115V AC single phase, 0.19 kW - Output Power: 0.25 hp - Inlet/Outlet Size and Type: 1/4 in female NPT connections - Housing and Enclosure Material: Grey Iron - Duty Cycle: Continuous - Thermal Protection: Yes - Maximum Operating Temperature: 104 Degrees F - Minimum Operating Temperature: 33.8 Degrees F - Sound Level: 60 dBA - Weight: 31 lb - Expected service life: 4,000 hours under continuous operation
