Aignep Usa 50210N-4-1-8-PK5

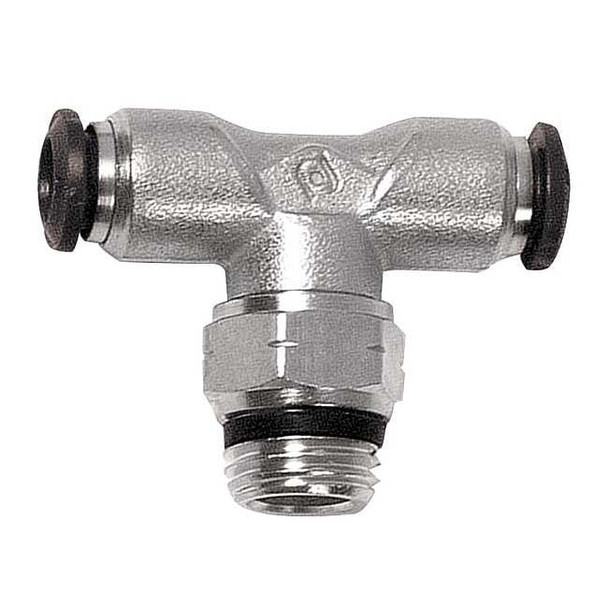

The AIGNEP USA - 50210N-4-1/8-PK5 falls under the category of "Push On Hose Fittings" and is specifically referred to as a "Push-Fit Tee Fitting". Crafted for applications involving air and steam, it marries three hose lines in a T-shaped formation. The push-fit design offers a quick, simple installation without threading or soldering, forming a secure, leak- joint. With a maximum operating pressure of 250 psi and an operating temperature spectrum of 0 to 160 Degrees F, this fitting is constructed for rigorous performance. Additionally, it is constructed from tough Nickel Plated Brass to endure diverse conditions. Ensure compatibility with tube materials like FEP, Nylon, Polyethylene, Polyurethane, and PTFE. Key Features: Connection styles of Push-to-Connect x Push-to-Connect x MNPT ensure sturdy hose fittings. Compatible with compressed air and gases. The entire component measures a convenient 1 11/32 in, with a tube size of 4mm and a pipe size of 1/8 in. The maximum operating conditions are a high pressure of 250 psi and a temperature spectrum of 0 Degrees to 160 Degrees F. Build material incorporates the durable Nickel Plated Brass with integrated components of Metal and Rubber. Adheres to internationally recognized standards including ISO 14743:2004, PED 2014/68/UE, 1907/2006 (REACH), 2011/65/CE (RoHS). This Fitting uses the Imperial system of measurement, presenting a Side A tube outer diameter of 5/32 in and a Side B tube outer diameter also of 5/32 in.
