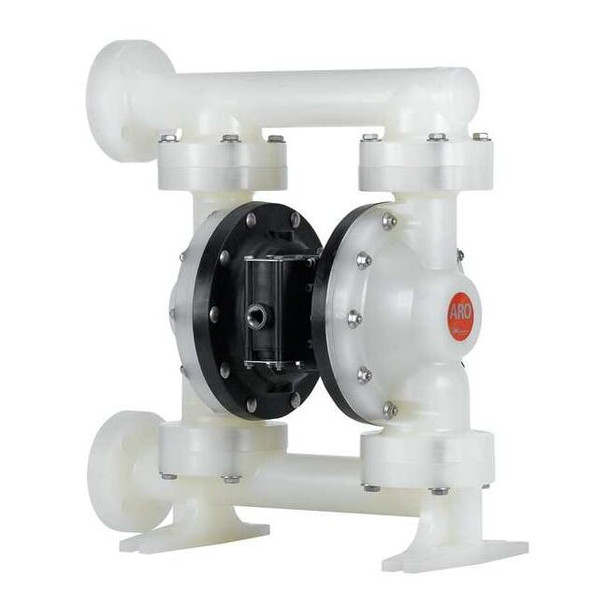

Aro PD15P-FPS-PTT

The ARO PD15P-FPS-PTT is an air operated double diaphragm pump designed for reliable transfer of a wide range of chemical and industrial fluids. Built with a polypropylene housing and wetted components, PTFE diaphragms and ball valves, and polypropylene check seats, this pump offers strong chemical resistance and dependable performance in demanding applications. It features 1-1/2 in flange side inlet and discharge connections, a single port flange manifold connection, self-priming capability, and a maximum flow rate of 126 gpm, making it well suited for fluid handling jobs requiring durability, efficiency, and compatibility with corrosive or sensitive media. Key Features: - Air operated double diaphragm pump with bolt assembly design for dependable fluid transfer performance. - Constructed with polypropylene housing and wetted housing for lightweight durability and chemical resistance. - Equipped with PTFE diaphragms and ball valves plus polypropylene check seats for compatibility with aggressive media. - Delivers a maximum flow rate of 126 gpm and 121.5 gpm at 100 psi. - Rated for a maximum operating pressure of 120 psi and a maximum head of 289 ft. - Self-priming dry to 14 ft for efficient startup and operation in demanding pumping applications. - Handles solids up to 1/4 in and fluids with viscosities up to 40,000 cps. - Features 1-1/2 in flange side inlet and side discharge connections and a 1/2 in FNPT flange air intake connection. - Suitable for media temperatures ranging from 40 to 150 degrees F. - Chemical compatibility includes ammonium hydroxide, calcium carbonate, diesel exhaust fluid, hydrochloric acid, phosphoric acid, potassium hydroxide, sodium hydroxide, sodium hypochlorite, sulfuric acid, and water. - Overall dimensions measure 24.5 in H x 11 in W x 20.9 in L. - Approved for use with potable systems and complies with CE, REACH, and RoHS requirements. - Backed by a 5 year manufacturer warranty.
