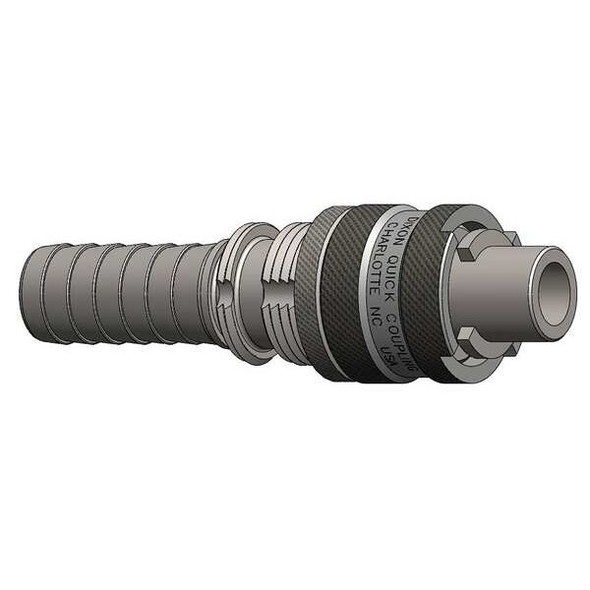

Dixon Quick Connect,Plug,1-2" Body,1-2" Barb N4S4-B

The DIXON - N4S4-B is a hose coupling with a sleeve locking mechanism intended for tool-free connection and disconnection when used with compatible couplers. It is a male plug compatible with Bowes style couplers, intended for use on the end of hoses or pipes. Constructed from brass with zinc plating, this coupling accepts 1/2 in inner diameter hoses via a 1/2 in barbed hose connection. It uses nitrile O-rings to form a seal under specified pressure and temperature conditions and is rated for operation within -40°F to 250°F. The coupling is rated for a maximum working pressure of 300 psi at 70°F ambient temperature and is rated for a maximum flow rate of 5,776.64 L/min. Key Features: - Hose barb size: 1/2 in for connecting to compatible hose I.D. - Coupling size: 1/2 in, matching standard Bowes interchange fittings. - Material: Brass body with zinc-plated finish for surface protection. - Connection type: Hose barb with male fitting gender. - Coupling locking type: Sleeve for secure attachment. - Seal material: Nitrile providing fluid-tight sealing. - Maximum flow rate: 5,776.64 L/min indicating fluid throughput capability. - Maximum working pressure: 300 psi at 70°F ambient temperature. - Temperature range: -40°F to 250°F. - Overall length: 4.94 in and maximum outside diameter: 1.44 in.
