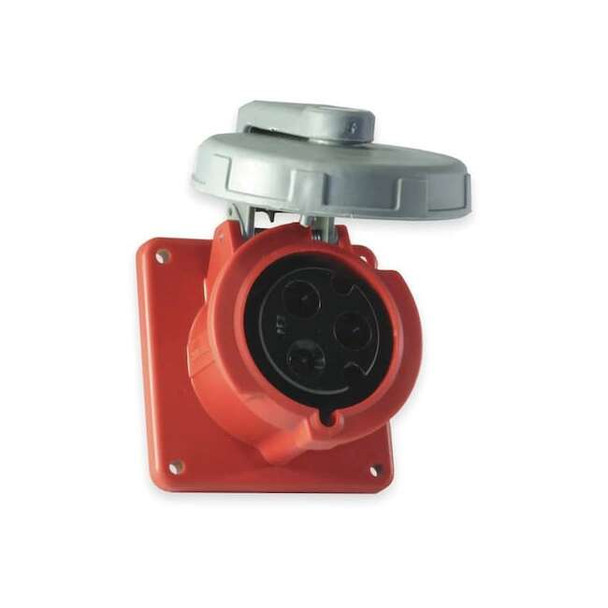

Hubbell Wiring Device-Kellems HBL360R7W

The HUBBELL IEC Pin and Sleeve Receptacle is an electrical device rated for 60A and 480V AC, suitable for use in industrial environments. Rated for 60A and 480V AC, this single-phase receptacle features a flanged design with pressure terminal screw connectivity; compatible with wire sizes from #8 AWG to #2 AWG. Constructed with Zytel 101 nylon housing and materials; rated for impact resistance and moisture protection per product specifications.Key Features of the HUBBELL IEC Pin and Sleeve Receptacle: Current/Voltage Rating: 60A, 480V AC single phaseIP67 rating per IEC 60309-1 (moisture resistance)Body Material: Zytel 101 nylon with housingCord Size Compatibility: Accepts #8 to #2 AWG conductorsScrew Terminal Connections: Pressure terminal screws compatible within specified ranges of conductor sizeOperating Temperature Range: -40°C to 75°C as specified by manufacturerFlanged Design: For standard service mounting applicationsSpring-loaded cap with gasketed cover as part of the enclosure design when not in useColor Coded Housing: Red color aids identification of voltage rating (480V)Standards Compliance: Listed to UL1682, CSA C22.2 No.182.1 & No.0.17; meets IEC requirements
