Hubbell Wiring Device-Kellems HBL29W83

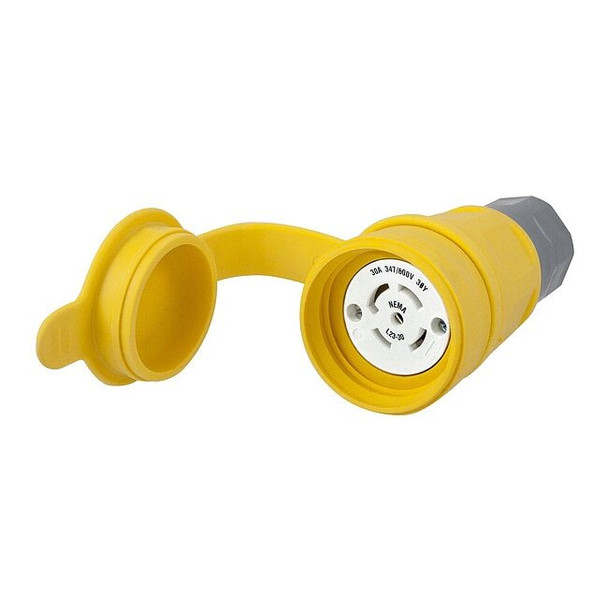

The HUBBELL 30A Watertight Locking Connector L23-30R is a four-pole, five-wire connector suitable for use in industrial and commercial electrical applications where watertight properties are specified. Rated for 347/600V AC and 30 amps, this connector features a elastomer body with a smooth surface finish. It is equipped with stainless steel hardware and nickel-plated brass contacts.Key Features of the HUBBELL 30A Watertight Locking Connector L23-30R: Body Material: elastomer housing; rated for exposure to moisture, UV, and certain chemicals as per manufacturer specifications.Cord Accommodation: Accepts cord diameters from 0.375 in to 1.125 in; suitable for wire sizes ranging from 18 AWG to 8 AWG.NEMA Enclosure Rating: Rated NEMA Types 4, 4X, 6, 6P, and 12; IP69K rated.Contact Material: Nickel-plated brass contacts.Operating Temperature Range: Rated for operation within -40°C to +60°C continuous temperature range.Connection Type: Straight connection orientation with screw terminals; grounded design complies with NEMA WD-1/WD-6 & ANSI standards.: Exposed materials are UV stabilized as per manufacturer specification;
