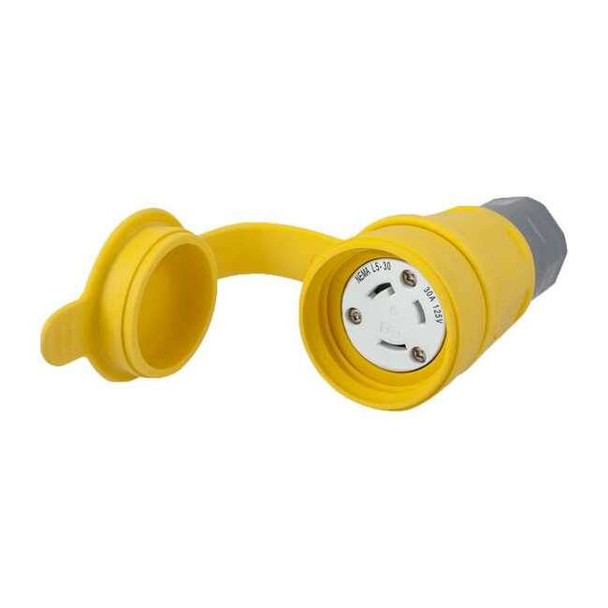

Hubbell Wiring Device-Kellems HBL29W47

The HUBBELL 30A Watertight Locking Connector (L5-30R) is a heavy-duty electrical connector intended for use in industrial and commercial applications requiring a watertight connector. It features a smooth body design facilitates cleaning during washdown procedures. The connector is constructed with corrosion- materials and stainless steel hardware; suitable for use in various environments.Key Features of the HUBBELL 30A Watertight Locking Connector: Current/Voltage Rating: Rated for 30 amps and 125V AC single-phase applications.NEMA Configuration: L5-30R locking configuration with screw terminal wire connections.Watertight & Properties: Meets NEMA enclosure ratings 4, 4X, 6, 6P, and IP69K; rated as to moisture ingress per these standards.Body Material: Constructed from elastomer with Valox components.Cord Accommodation: Accepts cable diameters from 0.375 in to 1.125 in; supports wire sizes from minimum cords (12/3 SJ up to max cord size of 8/3 S).Operating Temperature Range: Suitable for continuous use between -40°C and +60°C.Standards Compliance: Meets NEMA WD-1, WD-6, ANSI standards; rated per UL498 requirements including dielectric strength of up to 2500V AC.
