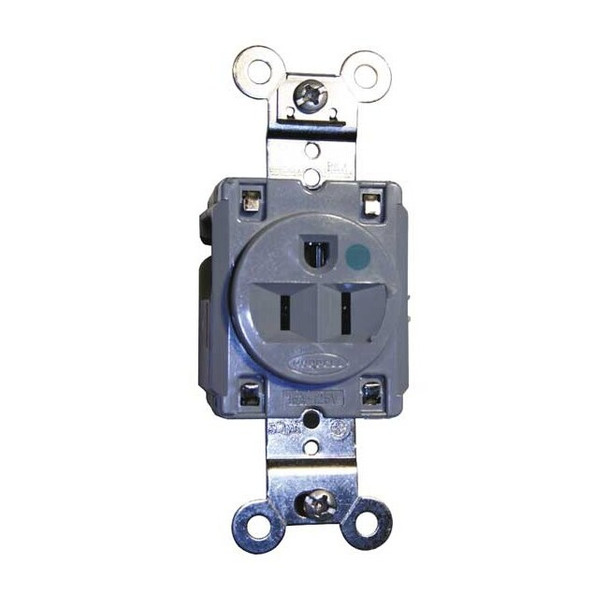

Hubbell Wiring Device-Kellems HBL8310GY

The HUBBELL 5-20R Hospital Grade Receptacle is a single, flush-mount electrical outlet rated for 20A and 125V AC. Suitable for hospital-grade applications requiring heavy-duty performance, this receptacle features a grounding design and supports both back and side wiring with screw terminals. It meets UL requirements for hospital devices; includes a nickel-plated brass integral ground strap and bypass contact design.Key Features of the HUBBELL 5-20R Hospital Grade Receptacle: Amperage/Voltage: Rated for 20A at 125V ACNEMA Configuration: Single outlet, NEMA 5-20RMounting Type: Flush mount; includes mounting hardwareWiring Method: Back and side wired screw terminals accommodate #12–#10 AWG copper wireContact Material: Brass contacts with nickel-plated bypass contact design intended to maintain consistent contact pressureGrounding System: Four-point grounding system designed to support low-resistance ground continuityMaterial Construction: Nylon/reinforced polyester housing; deep face housing constructed from materials rated as impact resistantOperating Temperature Range: -40°C to +75°C (without impact)Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186
