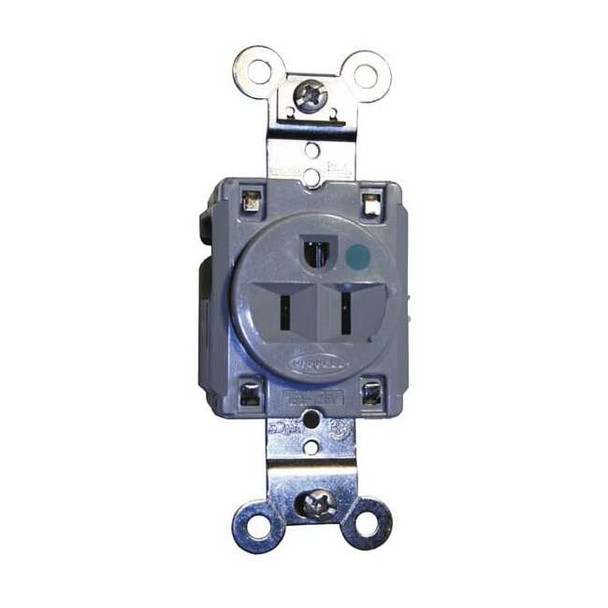

Hubbell Wiring Device-Kellems HBL8210GY

The HUBBELL Hospital Grade Single Receptacle is a 15A, 125V AC flush mount outlet suitable for installation in hospital and healthcare environments. This single NEMA 5-15R receptacle features a grounded design with both back and side wired screw terminals, supporting #14 to #10 AWG copper conductors. The device incorporates an impact- nylon housing and complies with UL requirements for hospital grade devices.Key Features of the HUBBELL Hospital Grade Single Receptacle: Amperage/Voltage: Rated for 15A at 125V ACNEMA Configuration: Single outlet, NEMA 5-15RMounting Type: Flush mount with included mounting hardwareWiring Method: Back and side wired screw terminals accommodate #14–#10 AWG copper wireContact Material: Brass contacts with nickel-plated bypass contact designGrounding System: Four-point grounding systemMaterial Construction: Impact modified PBT/reinforced PET body; nylon faceplateDielectric Strength & Flammability Ratings: Dielectric strength: minimum 2,000V; Flammability ratings: faceplate UL94V-2; base UL94V-0 and UL94-5VA  - Operating Temperature Range: -40°C (w/o impact) to +75°C continuous operation - Certifications & Standards: CSA Certified C22.2 No.42 File 285; Federal Specification W-C-596; NEMA WD-6; UL Listed to UL498 File E2186
