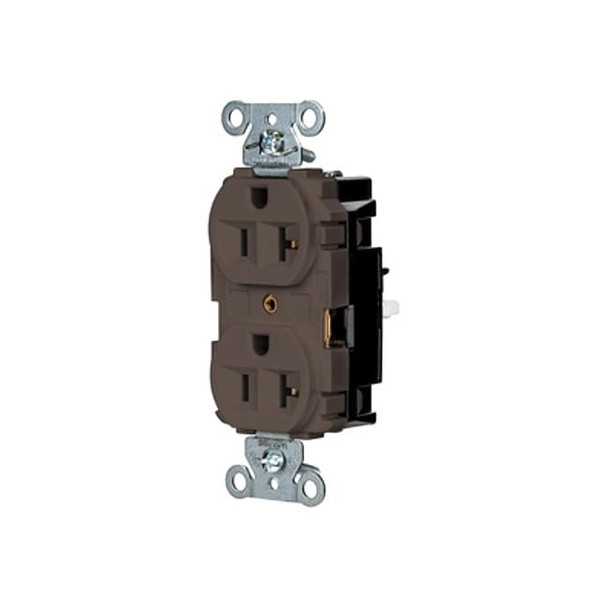

Hubbell Wiring Device-Kellems 5362ST

The HUBBELL Duplex Straight Blade Receptacle is a 20A, 125V AC rated for use in indoor, dry locations. It features the EdgeConnectâ„¢ screwless termination system that enables tool-free wire installation by simply inserting the wire and pressing down the plunger. This duplex receptacle accommodates two outlets and supports back-wired push-in connections suitable for copper conductors ranging from 14 AWG to 10 AWG.Key Features of the HUBBELL Duplex Straight Blade Receptacle: Termination System: Screwless push-in wiring with spring termination; does not require a screwdriver or torque wrench.Contact Material: Copper alloy contacts with triple and double wipe designCircuit Tab: Split circuit tab supports multiple wiring configurationsTamper : Tamper resistantNEMA Configuration: 5-20R configuration; grounded, polarized, single-phase design with two poles and three wires.Housing Material: housing rated for temperatures from -40°F to 167°F; brown color finish.Mounting & Hardware: Surface mount type; includes mounting hardware; non-flanged feed-through hub type.Standards & Ratings: Meets CSA Certified 22.2 No 42 File 285, Fed. Spec. W-C-596, NEMA WD-6, UL 498 File No E2186 standards; NEMA Enclosure Rating Type 1 (IP20); UL94 V-2 flammability rating.
