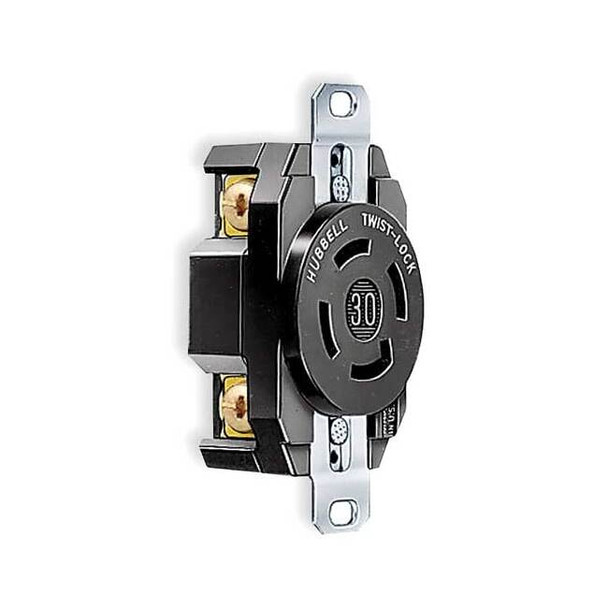

Hubbell Wiring Device-Kellems HBL3430

The HUBBELL 30A Twist-Lock Receptacle is a locking receptacle.Key Features of the HUBBELL 30A Twist-Lock Receptacle: Amperage/Voltage: Rated for 30 A at 120/208V AC, three-phase operationPoles/Wires: Four-pole, four-wire configurationMaterial Construction: Impact-modified PBT base; nylon face and housing; brass contacts and mounting system provide corrosion resistanceMounting Type: Flush mount design with included screw-mount hardwareWire Accommodation: Accepts #16 AWG to #8 AWG solid or stranded copper wire via screw terminals; supports both back or side wiringOperating Temperature Range: -40°C to +75°C (without impact)Flammability Rating: UL 94 V-2 or better for receptacles/inlets; HB or better for plugs/connectorsDielectric Strength & Performance: Withstands minimum 2,000V dielectric voltage; certified to interrupt current at the specified ratingCoding & Identification: Face color coded by voltage; terminal identifications per UL 498 (X, Y, Z, White, Green)
