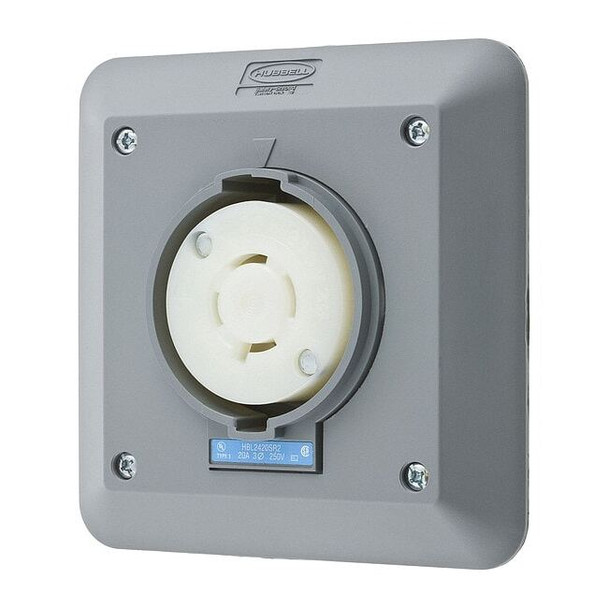

Hubbell Wiring Device-Kellems HBL2420SR2

The HUBBELL 20A Twist-Lock Receptacle L15-20R is a locking receptacle with twist-lock mechanism for electrical connections. Featuring a twist-lock mechanism and polarized design, this three-pole, four-wire device supports up to 250V AC and 20 amps. Its housing with impact- and corrosion- properties provides durability in demanding environments.Key Features of the HUBBELL 20A Twist-Lock Receptacle L15-20R: Lock Type: Twist-lock mechanism with alignment arrows and lock/unlock symbols for visual connection confirmationMaterial: Engineered (Valox) housing; brass contacts; corrosion- constructionElectrical Ratings: Rated for 20 A, 250V AC, three-phase operationNEMA Configuration: L15-20R with grounded designWire Accommodation: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminalsMounting Type: Semi flush mount; shrouded design; non-flanged flange typeTemperature Range: Operates from -40°F to 167°F (maximum continuous temperature rise of 30°C at full rated current)Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL 498 listedNEMA Enclosure Rating/IP Rating: NEMA Type 1 / IP20—intended for indoor use only
