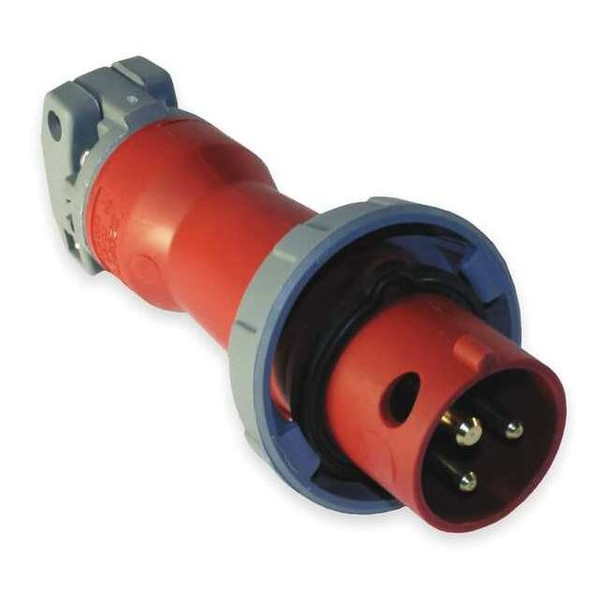

Hubbell Wiring Device-Kellems HBL330P7W

The HUBBELL IEC Pin and Sleeve Plug is a rated for 30 amps at 480V AC single phase electrical connector designed for high ampacity connections in demanding environments. This 30A, 480V AC plug features a rugged, non-metallic Zytel 801 nylon housing and is compatible with a range of portable cord types. It utilizes pressure terminal screws and accommodates wire sizes from #12 AWG to #8 AWG. The device meets CSA Standard C22.2 No. 182.1 and UL Classified to IEC60309-1 standards.Key Features of the HUBBELL IEC Pin and Sleeve Plug: Current/Voltage Rating: Rated for 30 amps at 480V AC single phaseWatertight Construction: Gasketed sealing ring; IP67 ingress protectionMaterial: Body made from Zytel 801 nylon compositeCord Mounting: For cord-mounted installation; supports cable diameters from 0.5 in to 1.25 inWire Connection Type: Screw terminals compatible with #12–#8 AWG wire sizesPole/Wire Configuration: Two poles, three wires (grounded)Operating Temperature Range: -40°C to +75°C continuous operation without impactHorsepower Rating: Rated up to 7-1/2 hpStandards Compliance: Meets CSA Standard C22.2 No.182.1, UL Listed File E146032, UL Classified to IEC60309-1 requirements
