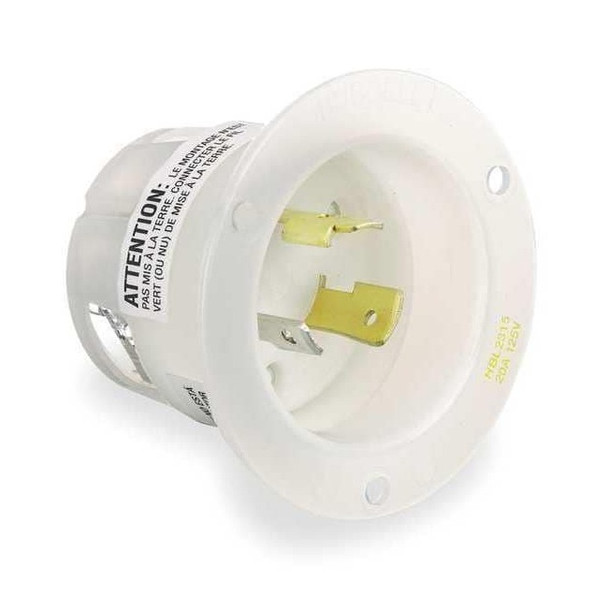

Hubbell Wiring Device-Kellems HBL2315

The HUBBELL 20A Flanged Twist-Lock Inlet (L5-20P WT) is a flanged locking inlet suitable for use in industrial environments requiring robust performance. It features a twist-lock mechanism with a 2-pole, 3-wire configuration and is rated for 20 amps at 125V AC. The device is constructed from impact- materials with a nylon housing and steel flange, intended for use in indoor dry locations. Backwired terminations feature backwired screw terminals compatible with slotted, Phillips, and Robertson drivers.Key Features of the HUBBELL - 20A Flanged Twist-Lock Inlet: Amperage/Voltage: Rated for 20 A, 125V AC single phaseNEMA Configuration: L5-20P plug pattern; twist-lock designMaterial Construction: elastomer body, nylon housing, steel flangeWire Accommodation: Accepts #16 AWG to #8 AWG solid or stranded copper wire; backwired screw terminals support slotted, Phillips, and Robertson driversMounting Type: Flush mount with included mounting screwsEnvironmental Suitability: Intended for indoor dry use; IP44 ingress ratingPerformance Ratings: Dielectric voltage: 2,000V minimum; maximum continuous operating temperature: 75°C; minimum operating temperature: -40°C (no impact)Certifications & Standards: Listed to UL 498; certified to CSA C22.2 No.42 and Federal Specification W-C-596
