Swing Check Valve, UP509 Series, 1 in, Press x Press, Lead-Free Bronze Body UP509-P2 - 100

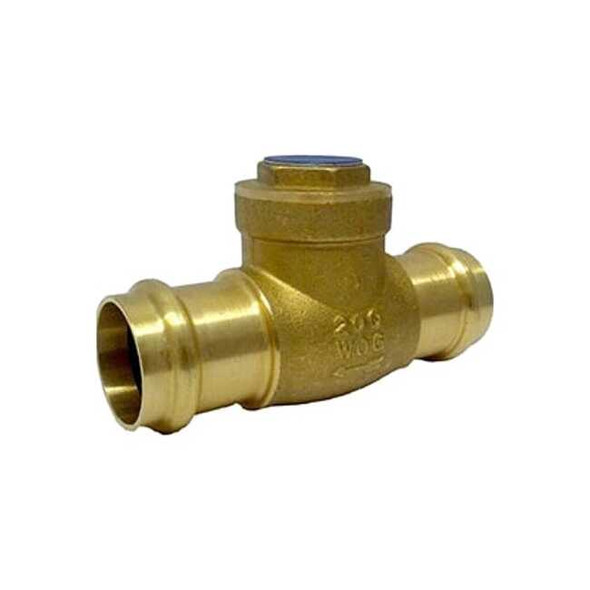

The MILWAUKEE VALVE UP509-P2 is a 1 in. swing check valve with a horizontal swing, T-style body design for water service applications. It is designed for one-direction flow applications; the hinged brass check mechanism responds to reverse flow. The valve features a lead-free bronze body, press x press connections, and a horizontal mounting orientation. Key Features: 1 in. swing check valve with horizontal swing design Lead-free bronze body with bronze seat and brass seal material 1 in. press x press connections Flow rating: 31 gpm; Cv 31 Maximum operating pressure: 200 psi Maximum water pressure at 250 degrees F: 200 psi Operating temperature range: -20 degrees F to 150 degrees F Cracking pressure: 0.5 psi Standards: NSF 61; MSS SP-80 Type 3 Dimensions: 7.25 in. overall length, 2 in. overall height, 2 in. cap to inlet center Standard check design; no counterweight Horizontal mounting orientation
