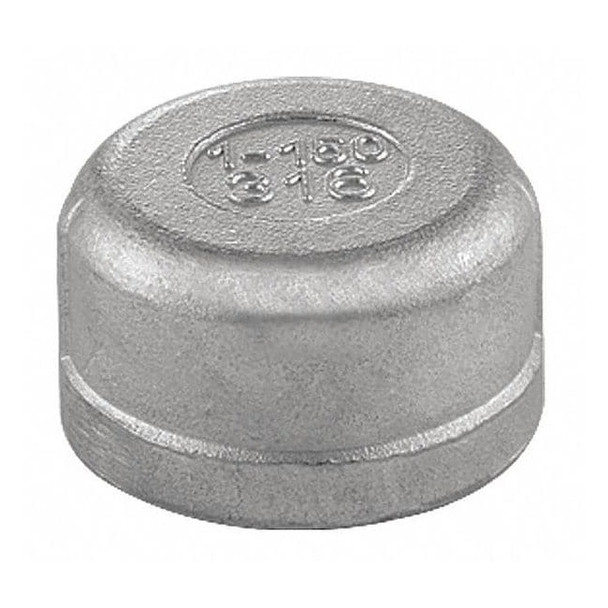

3-8 in FNPT 316L Stainless Steel Threaded Cap, Class 150, 300 psi Max Pressure 60RDC111N038

The ZORO SELECT - 60RDC111N038 is a stainless steel pipe cap made from 316L alloy, rated for use in line termination and sealing within specified parameters. It features a Class 150 pressure rating and is constructed with an FNPT connection type, facilitating threaded installation. It is intended for application in line termination, pressure testing, and future extensions where rated suitability is confirmed, supporting applications requiring reliable sealing and protection of the pipe interior. Key Features: - Made from 316L stainless steel for corrosion resistance and durability. - Complies with ANSI B1.20.1 and is rated for up to 150 psi under specified conditions. - Connects via FNPT (Female National Pipe Thread) end. - Nominal Pipe Size: 3/8 inch; Outside Diameter: 3/8 inch. - Overall Length: 24.5 mm. - Rated for a maximum pressure of 300 psi and steam pressure of 150 psi within specified conditions. - Rated to operate within the temperature range of -20°F to 350°F. - Fitting Schedule/Class: Class 150; Fitting Material: Metal.
