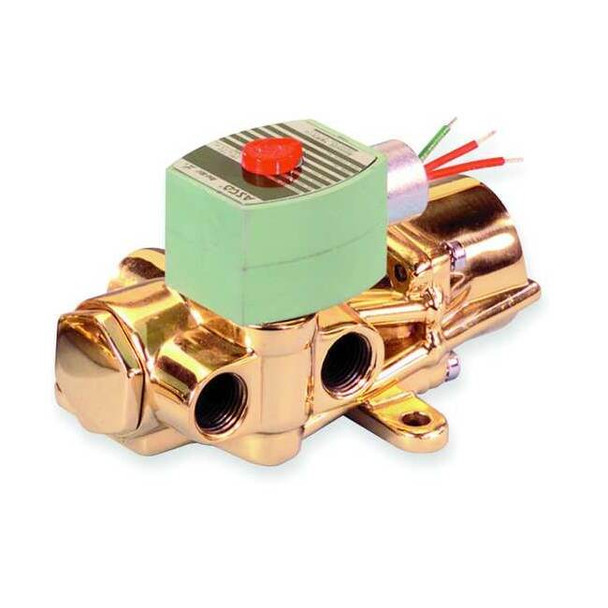

Asco EF8344G072

The ASCO EF8344G072 is a 4-way, 2-position direct acting solenoid valve designed for controlling the flow of air, inert gas, light oil, and water. Constructed with a brass body and NBR seals, it includes the coil required for operation and supports installation in either horizontal or vertical orientations. The solenoid coil features Class F insulation and Explosion-proof, watertight enclosure with Class F insulation; Environmental rating: Hazardous, Indoor, Outdoor. The valve includes NPTF inlet and outlet connections with a nominal pipe size of 3/8 inch and a center line pipe center size of 3 inches. This model operates on 120V AC at 60 Hz with a power consumption of 10.1 watts. Key Features: - Valve Type: NAMUR Mount, 4-Way/2-Position, 2-Position operation - Operation Method: Direct Acting - Body Material: Brass - Seal Material: NBR (Buna-N) - Orifice Diameter: 3/8 in - Flow Coefficient (Cv): 1.4 - Maximum Fluid Temperature: 180°F - Operating Pressure Differential Range: 10 psi minimum to 150 psi maximum for air/inert gas; 10 psi minimum to 125 psi maximum for light oil and water - Coil Enclosure: Explosion-proof, watertight enclosure with Class F insulation - Electrical Connections: 1/2 in conduit with 18 in leads - Voltage: 120V AC @ 60 Hz - Dimensions: Overall Height 4 in, Length 6 in, Width 3-3/16 in - Environmental rating: Hazardous, Indoor, Outdoor - Mounting Orientation: Horizontal or Vertical - Includes Coil and Seal - Thread Type: NPT for both inlet and outlet - Standards: ATEX, CSA, FM, IEC, SIL, UL Listed
