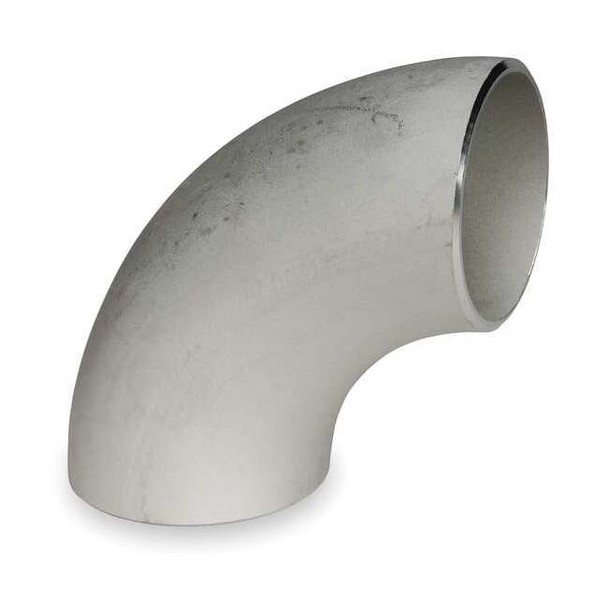

1-1-2 in Stainless Steel 304L Butt Weld Schedule 40 Long Radius 90° Elbow 4381017840

The ZORO SELECT - 4381017840 is a 90 Degree Long Radius Elbow stainless steel pipe fitting made from 304L stainless steel. It is designed to connect two pipes of 1-1/2" nominal size via butt weld connections, creating a 90-degree change in flow direction with a centerline radius 1.5 times the pipe diameter. This fitting is compatible with Schedule 40 pipe thickness and corrosion resistance inherent to 304L stainless steel with a centerline radius: 1.5D. Key Features: - Material: 304L stainless steel.- 90° bend with a centerline radius of 1.5D.- Connection Type: Butt Weld ends on both sides (Side A and Side B).- Nominal Pipe Size: 1-1/2" connections on both ends.- Pipe Schedule: Schedule 40, suitable for standard wall thickness piping systems.- Overall Length: 4-1/2".- Conforms to ASTM A403/A standards for dimensions and materials.- Color: Silver, typical of stainless steel finish.
