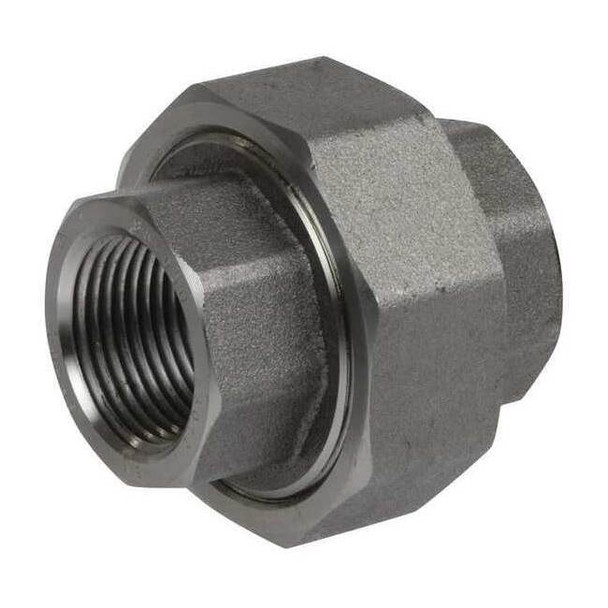

1-4 in FNPT 316 Stainless Steel Threaded Union, Class 3000 2UA37

The ZORO SELECT - 2UA37 is a stainless steel pipe union designed to be connected to join two 1/4-inch pipe ends with 18 TPI female NPT threaded connections, and is designed to allow connection or disconnection without rotating the pipes. Constructed from 316 stainless steel, it is designed for use in industrial, sanitary, or high-temperature piping systems within specified parameters. The union complies with ASTM A182 material standards and ANSI/ASME B1.20.1 thread specifications and meets MSS SP-83 requirements. It has a maximum working pressure rating of 2,900 psi at 100°F and a maximum steam pressure of 2,500 psi at 350°F. Key Features: - Three-piece mechanical fitting (body, nut, mating seat) for easy disassembly - Female NPT threaded connections on both ends, nominal pipe size 1/4 inch - Made from corrosion- 316 stainless steel alloy - Rated for use within pressure class 3000, up to 2,900 psi at 100°F - Rated for steam pressure up to 2,500 psi at 350°F - Threads conform to ANSI/ASME B1.20.1 standard - Material conforms to ASTM A182 and meets MSS SP-83 - Does not include thread sealant or sealing elements
