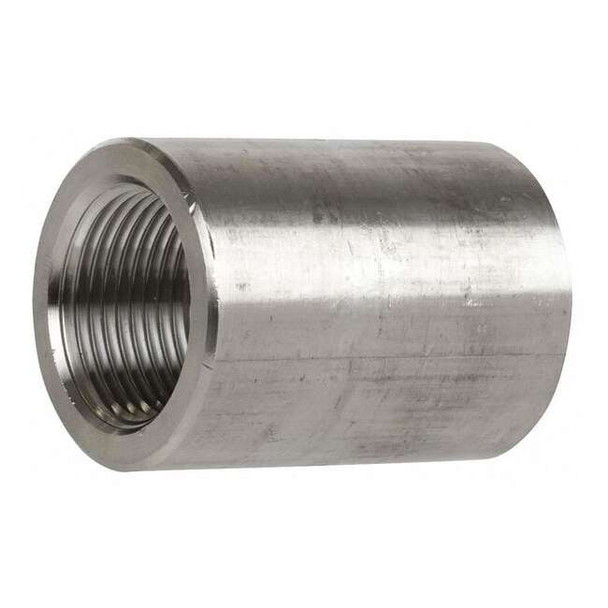

Manufacturer Varies 1-2 in FNPT 316 Stainless Steel Coupling, Class 3000 2TY83

The ZORO SELECT - 2TY83 is a stainless steel coupling that connects inline to compatible pipes or tubes via FNPT connections on both ends. Made from 316 stainless steel; compliant with ASTM A182; rated for high-pressure service within the Class 3000 rating. The fitting is rated Class 3000, supporting a maximum internal pressure of 3000 psi at 100°F, and a maximum steam pressure of 2500 psi at 350°F. Key Features: - Material: 316 Stainless Steel with compliance to ASTM-A-182. - Connection Type: Female National Pipe Thread (FNPT) on both ends, complying with ANSI/ASME B1.20.1 thread standards. - Nominal Pipe Size: 1/2 inch for both connection sides. - Pressure Class: Class 3000 - Maximum Pressure Rating: 3000 psi at 100°F; maximum steam pressure 2500 psi at 350°F. - Thread Size: 14 threads per inch on both connections. - Standards: Meets ASME B16.11 performance and dimensional standards. - Includes no pre-applied thread sealant or sealing components.
