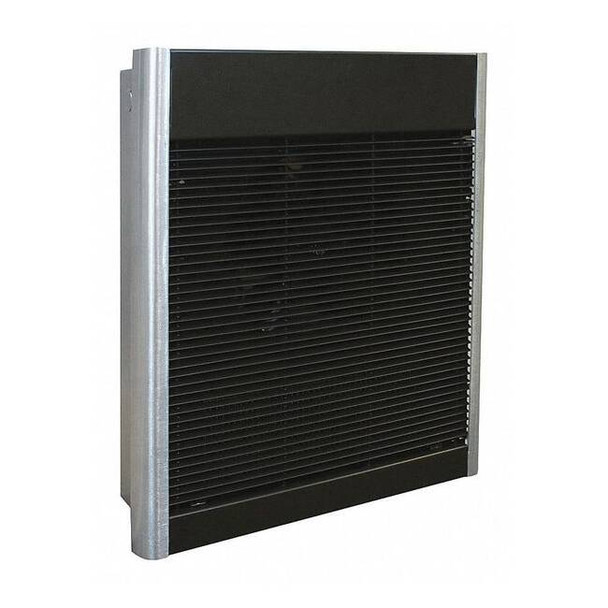

Qmark AWH4408F

The QMARK AWH4408F is a recessed electric wall heater with fan-forced operation for heating rooms and open areas. It operates on 208V AC, 1-phase power and offers field-convertible wattage output of 2000 W or 4000 W, with heating capacity of 6,824/13,649 BtuH. This architectural tamper- unit includes a built-in mechanical thermostat, power on/off switch, and automatic fan delay to help reduce cold air at start-up and release residual heat during shut down. The steel housing and steel bar-stock grille have a bronze powder-coated finish, and the heater can be mounted recessed or surface mounted in a horizontal position. Key Features: Fan-forced heating: Delivers 100 cfm airflow with a 105 degrees F air temperature rise. Field-convertible wattage: Configurable for 2000 W or 4000 W output. Built-in thermostat: Tamper- unit-mounted thermostat with mechanical selector dial control. Overheat protection: Manual reset thermal cutout disconnects power if airflow is blocked. Automatic fan delay: Delays fan operation at start-up and helps discharge residual heat at shut down. BMS compatible: Works with a building management system through an optional relay. Maintenance switch: Integrated power on/off disconnect switch. Construction: Steel housing and steel grille with bronze powder-coated finish. Mounting options: Designed for recessed or surface mounting; rough-in dimensions are 18-1/4 in H x 14-1/4 in W x 3-7/8 in D. Listing: cETL Listed.
