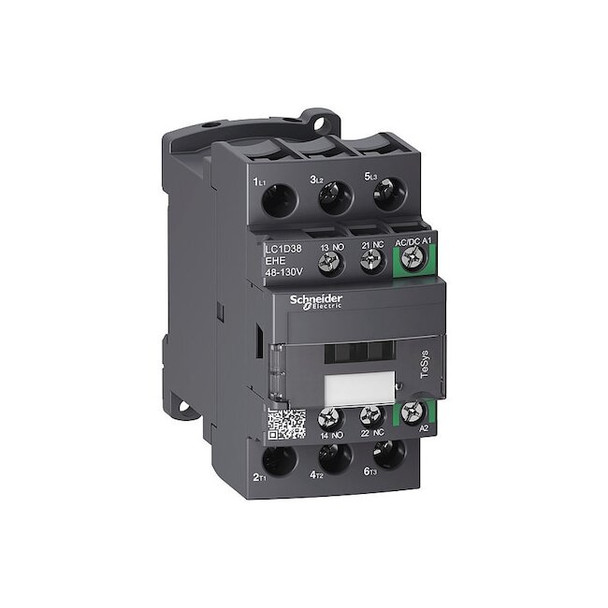

IEC Magnetic Contactor, 1NC-1NO, 48V-130V AC-DC, 3 P, Non-Reversing, Screw Clamp LC1D38EHE

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing electrical switch rated for use within specified electrical parameters in motor control and resistive-load applications. It is rated for operation with coil voltages between 48–130 V AC/DC and uses screw clamp terminals for wiring. The device contains auxiliary contacts as specified (NO/NC) and is part of the TeSys Deca family. Key features - Coil Voltage: 48–130 V AC/DC - Poles / Reversing: 3 poles; non-reversing - Auxiliary Contacts: NO/NC (2 total) - Electrical Connection: Screw Clamp Terminals - Frame / Series: TeSys Deca - Frequency: 50/60 Hz - Maximum Voltage / Insulation: 690 V - Enclosure / Protection: has an IP20 rating with included protective cover - Dimensions: Depth 3.62 in; Width 1.77 in; Height 3.35 in - Net Weight: 0.442 kg - Durability: mechanical durability of approximately 15 million cycles; electrical durability up to 1,800,000 cycles under specified conditions - Operating Timing: operates within the specified timing ranges under normal conditions - Impulse Withstand Voltage: 6 kV - Embedded Surge Suppressor: No - Additional: Non-overlap time 1.5 ms; Signalling circuit considerations as specified in data
