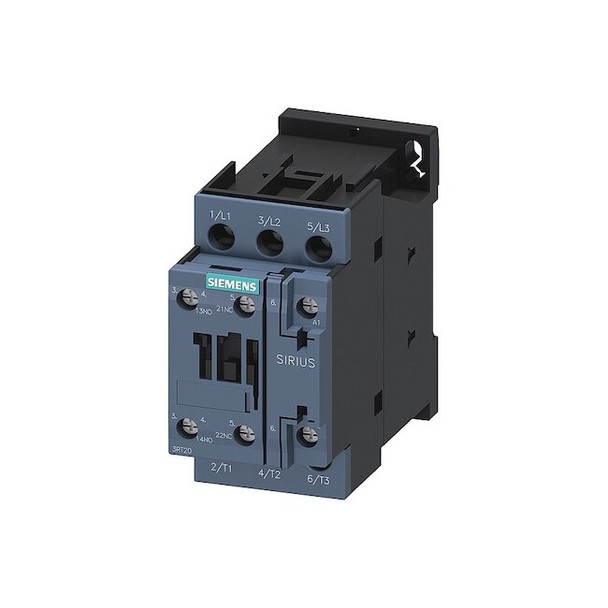

IEC Magnetic Contactor, 1NC-1NO, 480V AC, 3 P, Non-Reversing, Screw 3RT20241AV60

SIEMENS IEC Magnetic Contactor is a 3-pole, non-reversing electrical switch operated by a 480 V AC coil. It includes two auxiliary contacts (1NO/1NC) and main contacts configured as 3 normally open. This IEC-standard device is rated for use in control panel applications within specified parameters, with screw terminals and a frame size of S0 in the SIRIUS 3RT20 family. Key features - Coil voltage: 480 V AC - Poles: 3 - Auxiliary contacts: 2 (1NO/1NC) - Main contacts: 3 normally open - Frame/Series: S0, SIRIUS 3RT20 - Mounting: DIN Rail, Surface - Electrical connection: Screws - Frequency: 60 Hz - Phase: Three - Maximum voltage rating: 690 V AC - IP Rating: IP20 - NEMA Enclosure Rating: No Enclosure - Embedded Surge Suppressor: No - Max Operating Watts: 6 kW (at 400 V, AC-3); 23 kW (at 400 V, AC-1) - Response Time: Opening 4–16 ms; Closing 8–40 ms - Mechanical durability: 10,000,000 cycles - Overall dimensions: 4.14 in (H) x 3.55 in (D) x 1.97 in (W)
