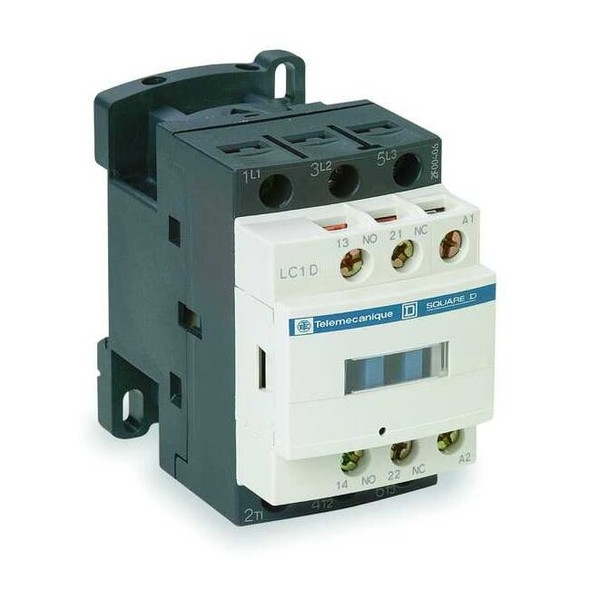

IEC Magnetic Contactor, 1NC-1NO, 480V AC, 3 P, Non-Reversing, Screw Clamp LC1D80T6

The SQUARE D IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for controlling motor control and resistive load circuits within specified parameters. It features 1 normally open and 1 normally closed auxiliary contact pair (2 auxiliary contacts total) and a 480 V AC coil. The device is equipped with screw clamp terminals suitable for specified wiring connections, and has an IP20 rated enclosure (if applicable) or is intended for indoor use in accordance with IP20 standards. It is compatible with DIN rail or plate mounting as specified; part of the TeSys Deca series (product classification only). - Poles/Main Contacts: 3 main contacts normally open; Auxiliary contacts: 2 total (1NO/1NC) - Coil Voltage: 480 V AC - Electrical connection: Equipped with screw clamp terminals suitable for specified wiring connections - Mounting: Compatible with DIN rail or plate mounting as specified - Enclosure/IP rating: Conforms to IP20 ingress protection rating when installed properly; if applicable, specify accordingly - Series: TeSys Deca product line (classification only) - Phase/Frequency: Three phase; 60 Hz - Rated voltage: Up to 690 V AC and 300 V DC per specifications - HP rating (3 Phase @ 480V): Up to 60 hp at 480V three-phase, under standard conditions - Rated breaking/making capacity: 1100 A @ 440V; 1100 A @ 440V (Power Circuit) making - Impulse withstand: 8 kV - Inrush/Hold VA: 220 VA start; 22 VA hold - Mechanical/Electrical durability: 10 Mcycles; 1,500,000 and 800,000 cycles (electrical) - Operating times: 20–35 ms (Closing); 6–20 ms (Opening) - Dimensions/Weight: Depth 5.12 in; Height 5 in; Width 3.34 in; Net weight 1.59 kg - Other: Non-reversing; Non-Reversing (Reversing: No); Shock/Vibration: 10 G (Closed); 8 G (Open); 3 G (Closed); 2 G (Open)
