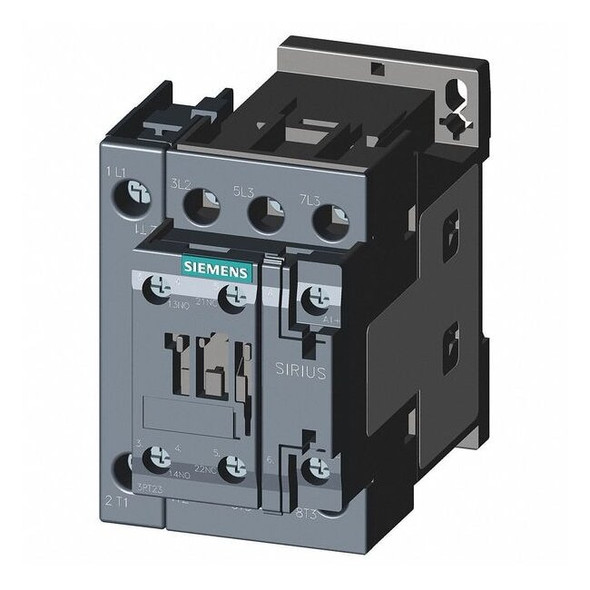

IEC Magnetic Contactor, 1NC-1NO, 24V DC, 4 P, Non-Reversing, Screw 3RT25261BB40

The Siemens IEC Magnetic Contactor is a 4-pole, electrically operated switching device rated for use in compliance with IEC standards. It features a 24 V DC coil and a non-reversing action, with two auxiliary contacts (1NO/1NC) and main contacts configured as 2NC/2NO. The unit uses an S0 frame and is compatible with DIN Rail or surface mounting within specified orientations, with screw terminals for wiring. It has an IP20 enclosure rating (no enclosed housing). This model is part of the SIRIUS 3RT25 family and is specified for 3-phase systems. Key features - Coil Voltage: 24 V DC - Poles: 4 - Main contacts: 2 normally closed (NC) and 2 normally open (NO) - Auxiliary contacts: 2 (1NO/1NC) - Action: Non-Reversing - Frame: S0 (Includes S0 Frame) - Mounting: DIN Rail, Surface; Orientation: Vertical - Electrical connection: Screws - Enclosure: IP20 enclosure rating (no enclosed housing) - Series: SIRIUS 3RT25 - Phase: 3 - Durability: specified durability of 10,000,000 mechanical cycles - Temperature: operates within the temperature range of -13°F to 140°F - Dimensions (approx.): Height 5.12 in, Width 3.04 in, Depth 3.67 in - Standards: REACH, WEEE
