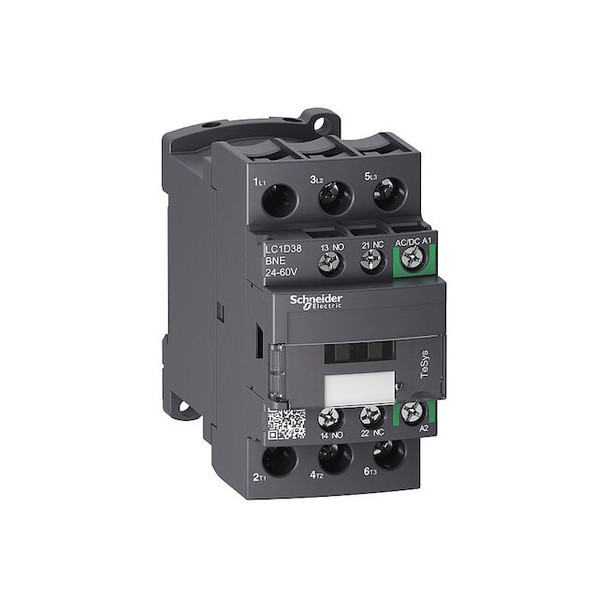

IEC Magnetic Contactor, 1NC-1NO, 24V-60V AC-DC, 3 P, Non-Reversing, Screw Clamp LC1D38BNE

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within specified motor control and resistive load applications. The unit is part of the TeSys Deca family, uses screw clamp terminals, and is rated for operation at voltages up to 690V AC within specified limits. Coil voltages are 24–60 V AC/DC within specified parameters, and it includes auxiliary contacts (1 NO / 1 NC) as specified. - Application: Motor Control, Resistive Load - Coil Voltage: 24–60 V AC/DC - Aux Contacts: 2 total (1 NO / 1 NC) - Contactor Style: IEC; Reversing: Non-Reversing - Poles/Main Contacts: 3 poles; 3 main contacts - Mounting: DIN Rail, Plate; Electrical connection: Screw Clamp - Enclosure/IP Rating: No Enclosure; IP20 - Rated Voltage: 690V AC - Full Load Amps: 50 A resistive, 38 A inductive - Maximum/Make/Break Capacities: Conforms to these capacity ratings under standard testing conditions; actual performance may vary based on application specifics - Frequency: 50/60 Hz - Dimensions/Weight: Depth 3.62 in; Height 3.35 in; Width 1.77 in; Net weight 0.442 kg - Series/Frame: TeSys Deca - Special features: Includes protective cover; Embedded surge suppressor: No - Standards: CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
