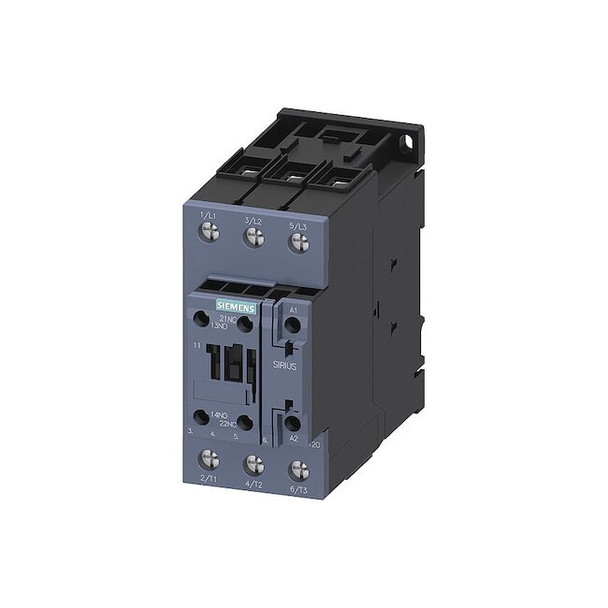

IEC Magnetic Contactor, 1NC-1NO, 220V-240V AC, 3 P, Non-Reversing, Screw 3RT20371AP60

The IEC Magnetic Contactor is an electrically operated switching device used to control power circuits in accordance with IEC standards. This Siemens model is 3-pole and designed as non-reversing, includes two auxiliary contacts (1 normally open, 1 normally closed), and a coil rated for operation within the specified voltage range of 220–240 V AC. It conforms to the specifications of the SIRIUS 3RT20 series, Frame Size S2. - Coil voltage: 220–240 V AC - Auxiliary contacts: 2 (1 NO, 1 NC) - Poles/Main contacts: 3 poles; 3 normally open main contacts - Reversing: Designed as non-reversing - Rated for voltages up to 690 V AC in accordance with IEC standards - Frequency: 50/60 Hz - Mounting style: DIN Rail, Surface - Electrical connection: Screws - IP rating: IP20 - Enclosure: No Enclosure - Series/Frame: SIRIUS 3RT20, Frame Size S2 - Embedded surge suppressor: No - Standards: REACH Art 33, WEEE (2012/19/EU) - Dimensions (overall): 4.82 in depth x 5.59 in height x 2.44 in width - Mechanical durability: tested for mechanical durability up to approximately 10 million cycles under standard conditions - Maximum operating watts: rated for operational power levels of up to 30 kW at 400 V (AC-3) and up to 53 kW at 400 V (AC-1) - Operating temperature: -13°F to 140°F
