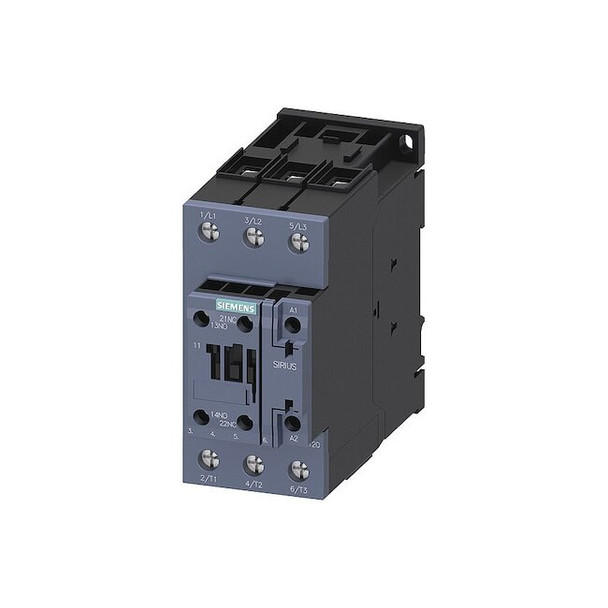

IEC Magnetic Contactor, 1NC-1NO, 208V AC, 3 P, Non-Reversing, Screw 3RT20361AM20

The Siemens IEC Magnetic Contactor is a three-pole, non-reversing electrical control device rated for switching within IEC standards. Compatible with specified voltage ranges; utilizes screw terminal connections. It includes auxiliary contacts configured as 1NO/1NC; part of the SIRIUS 3RT20 series (frame size S2). It is suitable for mounting on DIN rails or surfaces; supplied without an enclosure. Key features - Coil voltage: 208 V AC - Poles / Phase: 3, Three-phase - Reversing: Non-Reversing - Auxiliary contacts: 2 total (1NO/1NC) - Main contacts (Normally Open): 3 - Electrical connection: Screws - Rated for operation up to 690 V AC within specified conditions. - Frequency: 50/60 Hz - IP rating / Enclosure: IP20; No Enclosure - Frame / Series / Style: Frame S2; Series SIRIUS 3RT20; IEC - Mounting style: DIN Rail, Surface - Mechanical endurance based on testing parameters. - Full Load Amps: Inductive 52 A; Resistive 70 A - HP ratings (select examples): 3-phase 208V 15 hp; 3-phase 240V 15 hp; 3-phase 480V 40 hp; 3-phase 575V 50 hp; 1-phase 120V 3 hp; 1-phase 240V 10 hp
