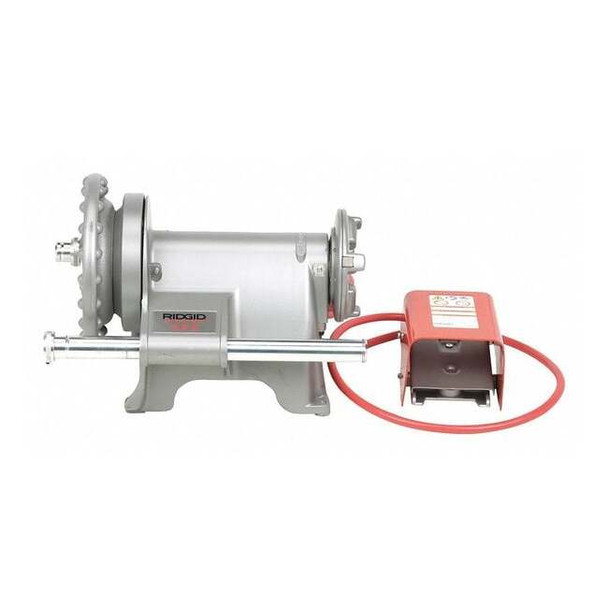

Ridgid 41855

The RIDGID 41855 is intended for stationary use with a fixed mounting/stand setup. It operates on a rated 120 V single-phase power; 1/2 hp motor and includes the power drive only; die heads are not included. The machine supports threading for bolts and rods in the 1/4 in to 2 in size range and supports threading for pipes in the 1/8 in to 2 in diameter range. It includes a cam-action rear centering device that is coupled to and rotates with the chuck and is mounted on a stand with support bars (two) mounted to the stand. The threading machine operates at 38 RPM (single speed) and provides forward/off/reverse operation via a forward/off/reverse switch and an integral foot switch. Key Features: - Threading capacity: bolts and rods 1/4 in to 2 in; pipes 1/8 in to 2 in - Motor rating: 1/2 hp; 120 V, 15 A, 60 Hz (corded operation) - Drive system: power drive only; die heads are not included - Mount type: stationary stand with support bars (two) mounted to the stand - Controls: forward/off/reverse switch and integral foot switch - Chuck type: manual; includes cam-action rear centering device that is coupled to and rotates with the chuck - Dimensions: 19 in overall length, 15.5 in width; weight 94 lb - Operation: single speed (38 RPM), reversible rotation - Certifications: CSA Certified, NRTL Certified, UL Listed - Plug type: three-prong
