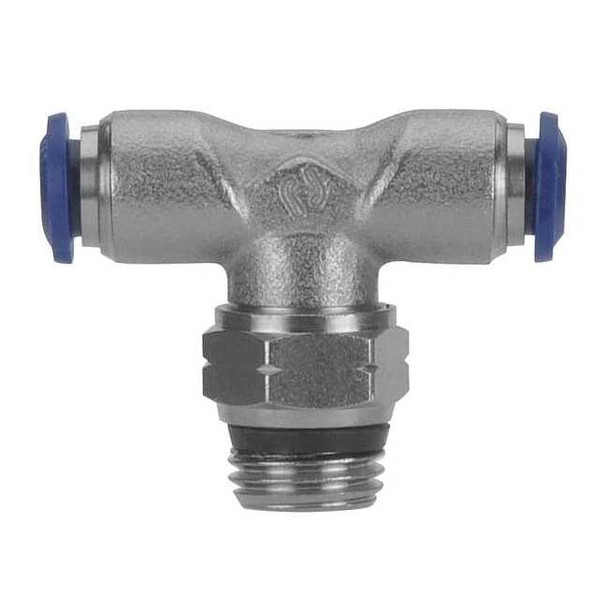

Aignep Usa 87210-06-06

The AIGNEP USA - 31158996 is classified as a "Push-Fit Tee Fitting" within the "Push On Hose Fittings" category. This T-shaped connector, made mainly of Nickel Plated Brass, enables secure, swift connections with air hoses, eliminating the need for threading or soldering. The fitting, constructed with Nickel Plated Brass, is used for connections in pneumatic, water, and other low-pressure systems. It is intended for use with air applications and is compatible with Copper, Nylon, Polyethylene, and Polyurethane tube materials. The fitting has a specific operating capacity of 0 to 160 degrees F and a maximum pressure of 290 psi. Key Features: Derived from "Push-to-Connect x Push-to-Connect x Universal", indicating that the fitting has two push-to-connect ends and one universal thread end for a range of secure hose connections. A tube outer diameter of 3/8 in across all three connections, capable of accommodating relevant hose sizes for effective air or fluid flow. Equipped with a swivel feature allowing for post-connection adjustments, enhancing the flexibility of your hose setup. The fitting's body is constructed with Nickel Plated Brass. Its maximum operating pressure is 290 psi. It can operate within a temperature range of 0 Degrees to 160 Degrees F. Measures 2 3/32 in in length, providing compact dimensions that do not require excessive space. Primarily designed for use with air applications, highlighting its compatibility with certain types of pneumatic systems.
