Spartan Scientific 6200-E70-AAB2B

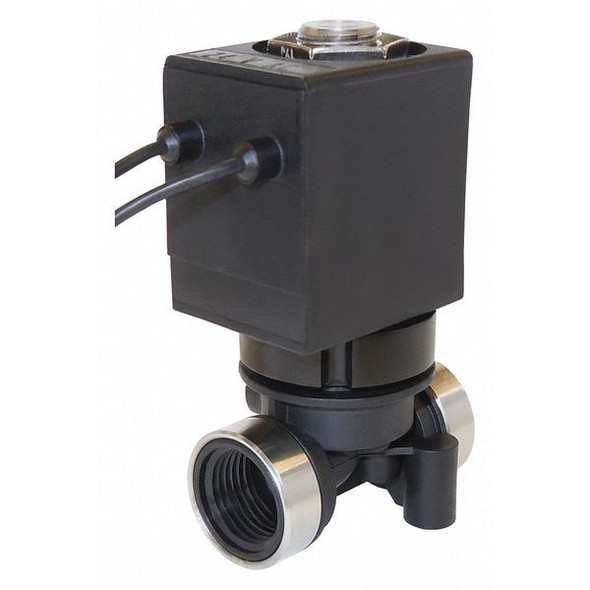

The SPARTAN SCIENTIFIC 6200-E70-AAB2B is a 2-way, 2-position solenoid valve with a normally closed poppet design. It features a glass-filled nylon body and EPDM seals, and includes the coil and sealing components necessary for operation. The valve is direct acting and connects via 1/4 in NPT inlet and outlet ports. Compatible with air, inert gases, light oils, and water per the manufacturer’s chemical compatibility specifications. The valve operates at 12V DC with a power consumption of 10 watts and a frequency of 60 Hz, with an operating ambient temperature range: 50°F to 122°F. Key Features: - Valve Type and Design: Poppet, 2-Way/2-Position, Normally Closed configuration - Material: glass-filled nylon body with EPDM seal material - Connection: 1/4 in NPT inlet and outlet, threaded pipe connections - Operating Parameters: Max fluid temperature 140°F; max differential pressure 80 psi for air/inert gas, light oils, and water; maximum working water pressure 135 psi - Electrical: 12V DC coil voltage, 10 W power consumption, wire lead electrical connections - Coil Features: Included coil with Class F insulation, enclosure IP65 (NEMA 4) rating - Environmental and Enclosure Ratings: Outdoor use; enclosure IP65 (NEMA 4) - Dimensions: Overall length 1-13/16 in, width 1-15/32 in, height 3-7/32 in - Additional: Includes seals; orifice diameter 13/64 in; valve body style is straight
