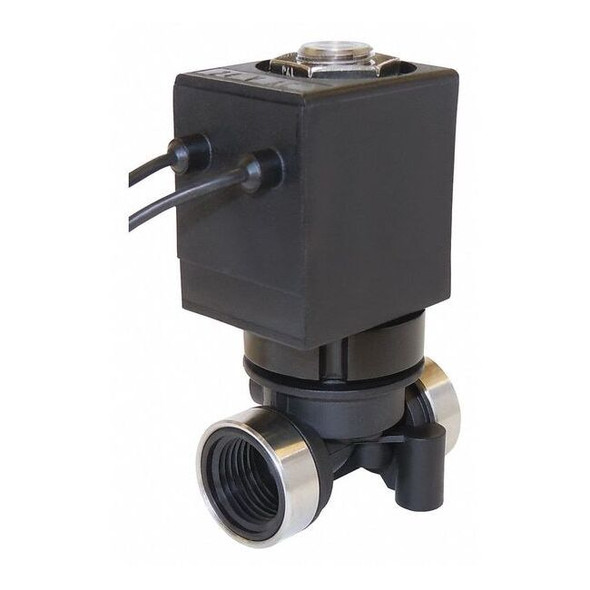

Spartan Scientific 6200-B70-AAC3B

The SPARTAN SCIENTIFIC 6200-B70-AAC3B is a 2-way, 2-position solenoid valve featuring a normally closed poppet design. It is a direct-acting valve constructed with a glass-filled nylon body and Buna N seals. The valve operates at 24V DC with a wattage of 10 W and comes complete with the coil and necessary seals. General-purpose use; media compatibility: air, inert gases, light oil, and water. Maximum operating temperature: 140 °F. Outdoor-use per IP65 rating; NEMA 4 enclosure (dust and water ingress protection per specifications). Key Features: - Valve Body: Glass-filled nylon - Seal Material: Buna N - Voltage: 24 V DC - Wattage: 10 W - Valve Design: 2-Way/2-Position; Normally Closed - Valve Type: Poppet; Operation Type: Direct Acting - Nominal Pipe Size: 3/8 in with NPT inlet and outlet connections - Orifice Diameter: 13/64 in - Maximum Operating Pressure Differential: 50 psi for air/inert gas, light oil, and water - Flow Coefficient (Cv): 0.61 - Electrical Connection: Wire leads - Coil Enclosure: Watertight, dust tight; Coil Insulation Class: F - Includes: coil and seals - Environmental Rating: Outdoor; IP Rating: IP65; NEMA Rating: 4 - Ambient Temperature Range: 50 to 122 °F - Overall Dimensions: Length 1-13/16 in, Height 3-7/32 in, Width 1-15/32 in - Standards: CE certified
