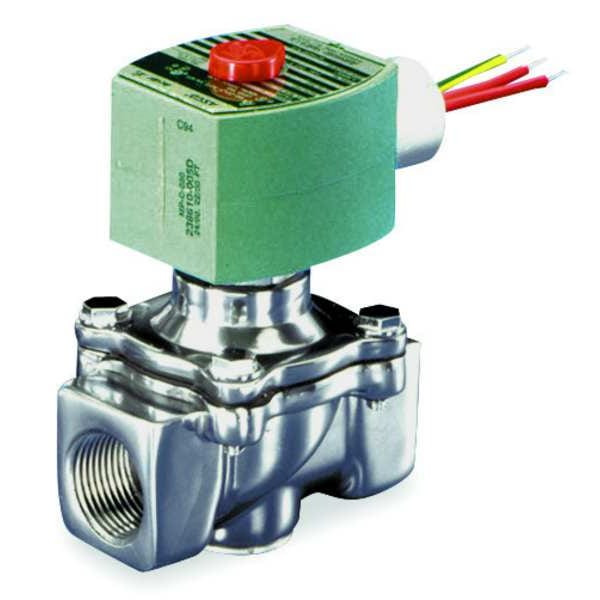

Asco 8214G020

The ASCO 8214G020 is a pilot-operated, normally closed solenoid valve designed for on-off control of fuel gas in commercial and industrial gas burners. It features a double solenoid actuator and high flow gas shut-off capability with a test port. Constructed with an aluminum body and NBR seal material, the valve supports fluid temperatures up to 125°F. Ambient temperature range: -40°F to 125°F. It includes the necessary coil and sealing components for installation. Environmental ratings: Indoor, Outdoor, Hazardous. It uses 120V AC power at 60 Hz frequency. Its design facilitates vertical mounting with NPTF inlet and outlet connections sized for a nominal 1/2 in pipe size. Key Features: - Valve Design: 2-Way/2-Position with Normally Closed starting configuration - Operating Pressure Differential: 0 to 5 psi for fuel gas, air/inert gas, and water - Orifice Diameter: 3/4 in - Coefficient of Volume (Cv): 4.4 - Gas Capacity: 238,500 BtuH - Coil Enclosure: General Purpose, Watertight, without junction box - Coil Insulation Class: F - Electrical Connections: 1/2 in conduit - Ambient temperature range: -40°F to 125°F - Overall Dimensions: 4-1/32 in height, 2-3/4 in length, 2-3/8 in width - Response Time: 1 second - Includes: Coil and seal - Environmental ratings: Indoor, Outdoor, Hazardous - Mounting Orientation: Vertical - Standards: CSA, FM, UL certified - Wattage: 17.1 W
