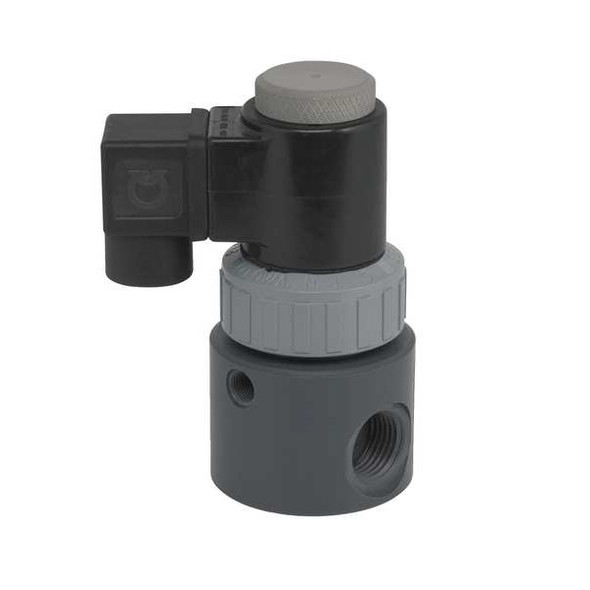

Plast-O-Matic PS075EPW11-120-60-PV

The PLAST-O-MATIC PS075EPW11-120/60-PV is a diaphragm 2-way, 2-position inline pilot solenoid valve configured to provide flow control within the specified operating ranges for liquids (pressure differential 5 psi to 70 psi; maximum fluid temperature 140°F). It operates with a normally closed starting configuration and can be mounted horizontally or vertically. This valve includes an coil and sealing components. It operates at 120 VAC and 60 Hz with a power consumption of 11 W. Key Features: - Body Material: PVC - Seal Material: EPDM - Nominal Pipe Size: 3/4 in NPT inlet and outlet connections - Operating Pressure Differential: Minimum 5 psi; Maximum 70 psi (water) - Maximum Fluid Temperature: 140°F - Maximum Ambient Temperature: 104°F - Coil enclosure: NEMA 4X rated (watertight, dust-tight) - Coil Insulation Class: F - Electrical Connections: 1/2 in Conduit - Valve Design: Diaphragm - Valve Type: Inline Pilot - Voltage: 120 VAC - Wattage: 11 W - Environmental Rating: Indoor and outdoor use per NEMA 4X enclosure rating - NEMA Enclosure Rating: 4X - Includes Coil: Yes - Includes Seal: Yes - Overall Dimensions: Length 4 in, Width 4 in, Height 7-9/32 in - Application: Suitable for liquids within specified operating ranges (5 psi to 70 psi; maximum fluid temperature 140°F)
