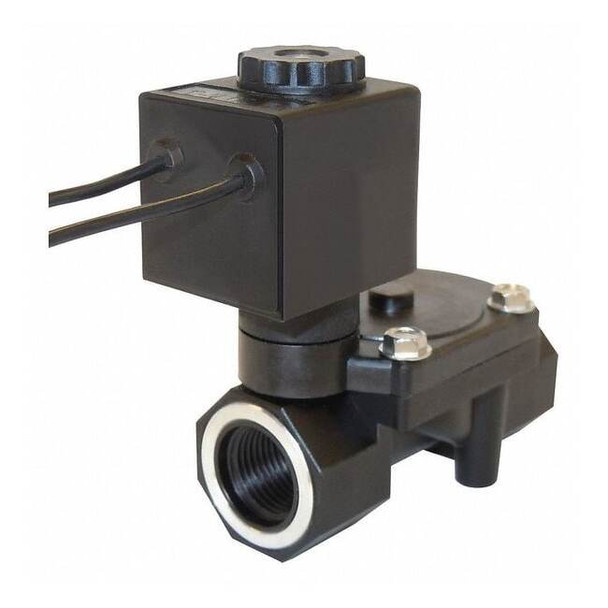

Spartan Scientific 3585-030-9237B

The SPARTAN SCIENTIFIC 3585-030-9237B is a 2-way, 2-position, normally closed solenoid valve with a diaphragm design and remote pilot operation. It controls the flow of air and water by using an energized coil to actuate an internal pilot diaphragm, enabling automated control of liquids and gases. Valve body material: glass-filled nylon. The valve includes the coil and seals required for installation and operation, and features NPT inlet and outlet connections with 1/2 inch nominal pipe size and orifice diameter. Key Features: - Valve Body Style: Straight - Actuator Type: Internal Pilot - Operating Temperature Range: 50°F to 122°F ambient; fluid temperature up to 194°F - Operating Pressure Differential: 10 psi minimum; 150 psi maximum for air, inert gas, light oil, and water - Coil Enclosure: Watertight, Dust Tight with Class F insulation; includes coil with wire leads - Electrical Specifications: 120 VAC, 60 Hz; power consumption 6.5 W - Environmental Rating: Outdoor; NEMA 4; IP65 - Seal Material: EPDM - Dimensions: Overall height 3-3/16 in; length 2-23/32 in; width 1-1/2 in - Standards: CE certified
