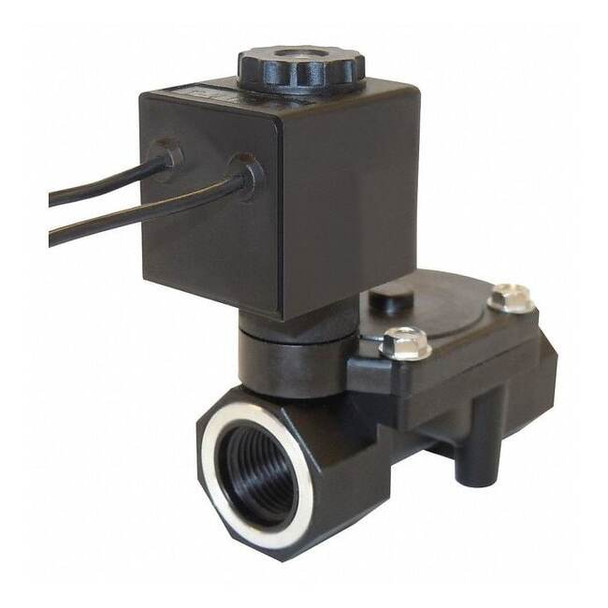

Spartan Scientific 3585-020-9237B

The SPARTAN SCIENTIFIC 3585-020-9237B is a 2-way, 2-position solenoid valve with a normally closed starting configuration. It operates using an internal pilot actuator and a diaphragm valve design in a straight body style. Media compatibility: air and water; controlled remotely via an energized coil. Operating ambient temperature range: 50°F to 122°F. Maximum fluid temperature: 194°F. Operating differential pressure range: 10 psi to 150 psi. This valve features NPT inlet and outlet connections sized at 1/2 inch nominal pipe size. Key Features: - Body Material: Glass filled nylon - Seal Material: Buna N - Coil enclosure rating: watertight and dust-tight per IP65 - Electrical Connections: Wire leads - Coil Insulation Class: F - Voltage: 120V AC at 60 Hz frequency - Wattage: 6.5 W - Environmental Rating: Outdoor - IP Rating: IP65 - NEMA Enclosure Rating: 4 - Orifice Diameter: 1/2 inch - Overall Dimensions: Height 3-3/16 in, Length 2-23/32 in, Width 1-1/2 in - Includes Coil and Seal - Standards: CE certified
