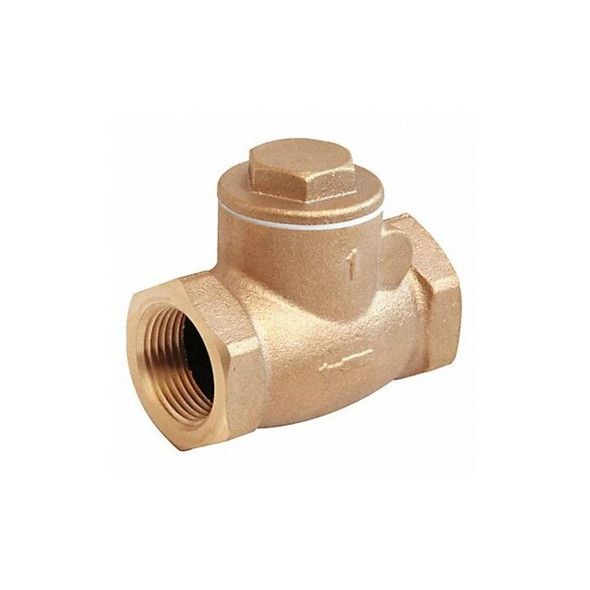

Swing Check Valve, Inline, 1-1-4 in, FNPT x FNPT, Bronze Body 10F293

Zoro Select swing check valve for general-purpose steam and water service. This inline, single-flow valve is configured for one-direction flow applications with a swing check mechanism. The bronze body, bronze seat, and threaded female NPT connections are specified for 1-1/4 in piping systems requiring backflow control. Key Features: Swing check design: Inline swing mechanism with single-flow design. Body material: Bronze construction with bronze seat and bronze seal material listed. Connections: 1-1/4 in FNPT x FNPT with female connections on both sides. Pressure ratings: 200 psi maximum water pressure and 125 psi WSP maximum steam pressure. Cracking pressure: 0.75 to 1 psi. Flow capacity: 46 gpm. Rated temperature range: -20 Degrees F to 406 Degrees F. Mounting orientation: Horizontal or vertical. Full flow: Yes. Dimensions: 3.38 in overall length, 2-1/16 in cap to inlet center, 2 in hex size. Standards: ASTM B62, MSS-SP-80.
