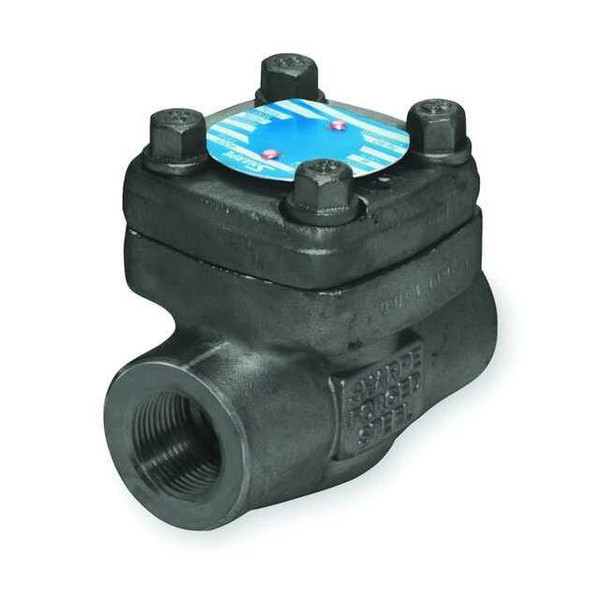

Sharpe Valves 2" FNPT Forged Carbon Steel Piston Check Valve 4371001560

SHARPE VALVES 4371001560 is a 2 in. piston check valve with FNPT x FNPT threaded connections and an inline forged carbon steel body. It is for general-purpose service with steam and water, configured for one-direction flow with automatic closure to help reduce reverse flow. The horizontal-mount valve uses a piston check mechanism with a single-flow design and standard check configuration. Key Features: 2 in. nominal valve size with 2 in. female NPT connections on both ends Forged carbon steel inline body with piston check mechanism Media: steam, water Cracking pressure: 13 psi Flow rate: 60 gpm; Cv: 25 Pressure ratings: 2,000 psi at 100 Degrees F for water; 800 psi WSP for steam; maximum operating pressure: 1,600 psi Temperature range: 0 to 800 Degrees F Seat material: Stellite Seal materials: 304 stainless steel, graphite Spring material: 316 stainless steel; check mechanism material: 316 stainless steel Mounting orientation: horizontal Standards: Meets multiple API, ASME, and NACE standards Overall length: 6.77 in.
