Asco 8344G072

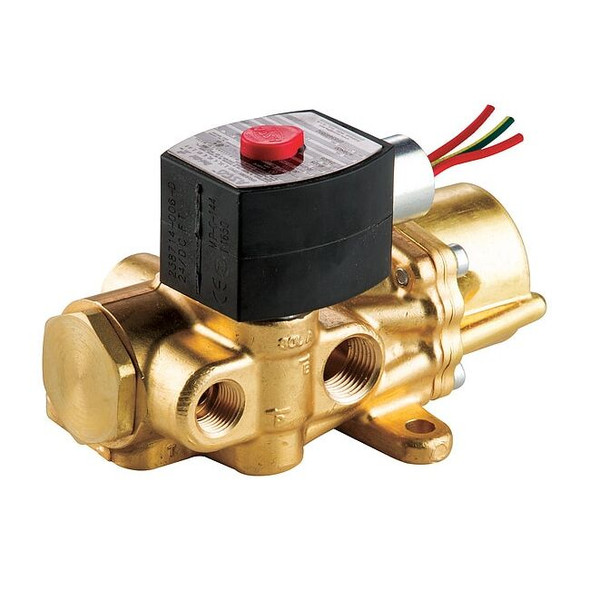

The ASCO 8344G072 is a direct acting, 4-way/2-position solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a brass body and NBR seals, with inlet and outlet connections both utilizing NPTF threading. This valve operates at 120V AC. The coil is included and rated with Class F insulation and a power consumption of 10.1 watts. It is configured with a default starting position and can be mounted either horizontally or vertically. Key Features: - Valve Design: 4-Way/2-Position with 2 positions - Body Material: Brass - Seal Material: NBR - Operation Type: Direct Acting - Nominal Pipe Size: 3/8 in with a 3/8 in orifice diameter - Connection Types: Inlet and Outlet both NPTF threaded - Coil: Included; 120V AC, 60 Hz frequency, Class F insulation, 10.1 W power consumption - Electrical Connections: 1/2 in conduit with 18 in leads - Maximum Fluid Temperature: 180°F - Operating Pressure Differential: Minimum 10 psi, Maximum 150 psi for air/inert gas; Maximum 125 psi for light oil and water - Dimensions: Overall Length 6 in, Width 3-3/16 in, Height 4 in - Coil Enclosure: Watertight, without junction box - Mounting Orientation: Horizontal or Vertical - IP Rating: 66 - Valve Type: NAMUR Mount
