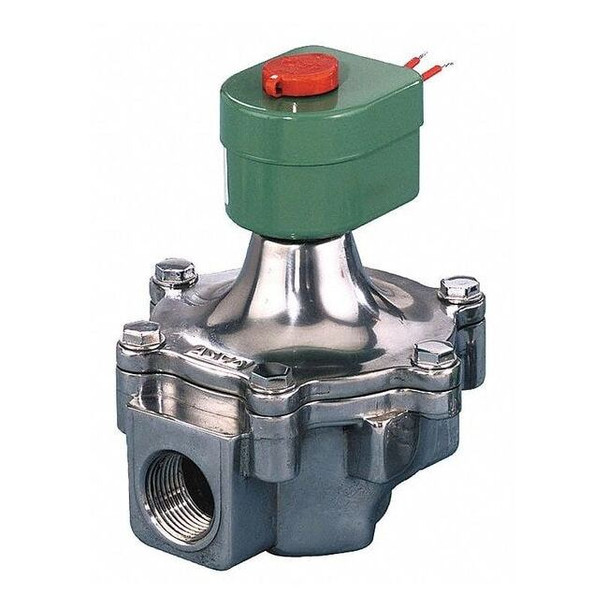

Asco 8215C083

The ASCO 8215C083 Solenoid Valve is a direct-acting, 2-way, 2-position valve with a normally open starting configuration, designed for controlling air and vacuum service. Constructed with an aluminum body, it features a high flow design to provide automated control by using an energized coil to actuate the valve. It is rated for ambient temperatures between 32°F and 125°F and for fluids up to 125°F. This valve is suitable for managing flow with an orifice diameter of 2-1/16 inches and a nominal pipe size of 2 inches, supporting a maximum operating pressure differential of 25 psi for air/inert gas and water. Key Features: - Valve Type: High Flow, Direct Acting - Valve Configuration: 2-Way/2-Position, Normally Open - Body Material: Aluminum - Orifice Diameter: 2-1/16 in; Nominal Pipe Size: 2 in - Operating Pressure Differential: 0 to 25 psi for Air/Inert Gas and Water - Coil Electrical: 120V AC, 15.4 W power consumption - Coil Enclosure: Watertight, Without Junction Box; Insulation Class F - Electrical Connections: 1/2 in Conduit with 18 in Leads - Environmental Rating: Indoor and Outdoor; NEMA 1; IP65 - Includes Coil and Seal; Seal Material: NBR - Response Time: 120 milliseconds - Inlet/Outlet Connections: NPTF threads; Thread Type: NPT - Gas Capacity: 3,100,000 BtuH - Standards: CSA, FM, UL certified - Overall Dimensions: Length 6-3/32 in, Width 6-5/16 in, Height 7-7/16 in
