Asco 8215B050CSA

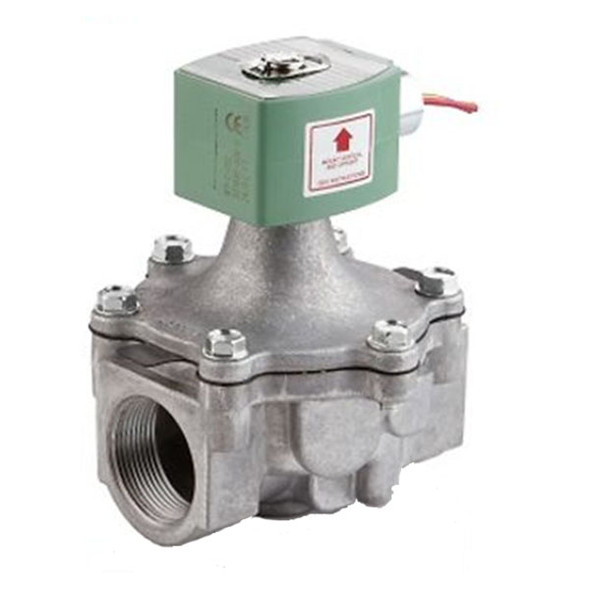

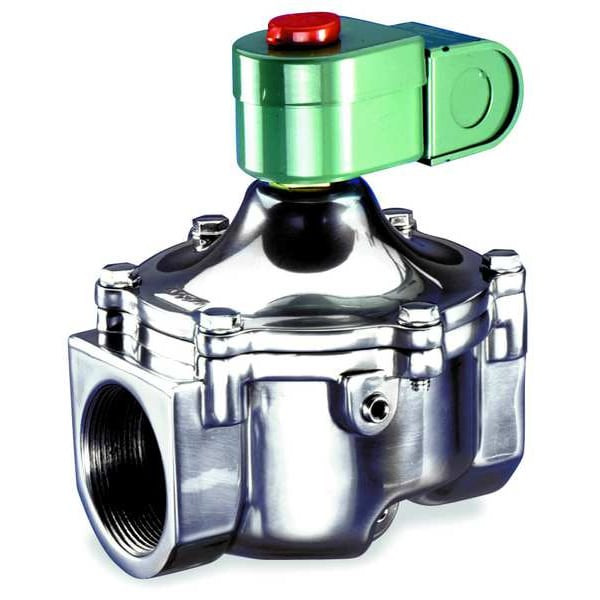

The ASCO 8215B050CSA is a 2-way, 2-position direct-acting solenoid valve designed for air and vacuum service. It features a normally closed configuration and includes the coil and seals needed for operation. Constructed with an aluminum body and NBR sealing material, this valve controls the flow of air with a flow coefficient (Cv) of 21 and an orifice diameter of 1-5/8 inches. The valve operates at 120V AC power with a coil wattage of 15.4 W and a response time of 120 milliseconds. Its design supports a maximum operating pressure differential of 25 psi for air/inert gases and water, operating effectively within an ambient temperature range of 32°F to 125°F and fluid temperatures up to 125°F. Key Features: - Valve Type: High flow, direct-acting, 2-Way/2-Position - Body Material: Aluminum with NBR seals - Connections: 1-inch nominal pipe size with NPTF inlet and outlet threads - Electrical: 120V AC, 50/60 Hz, coil insulation class F, with 1/2 inch conduit and 18-inch leads - Environmental Rating: NEMA 1 enclosure; IP65 rated - Dimensions: Overall length 5 in, width 5-3/8 in, height 6-13/16 in; center line pipe size 5-15/32 in - Performance: Cv value 21, maximum fluid temperature 125°F - Operating Pressure Differential: Minimum 0 psi, maximum 25 psi (air/inert gas and water) - Includes: Coil and seals - Certifications: CSA and UL listed
