Parker 5-16" Push Acetal Ball Check Valve A5VC5-MG

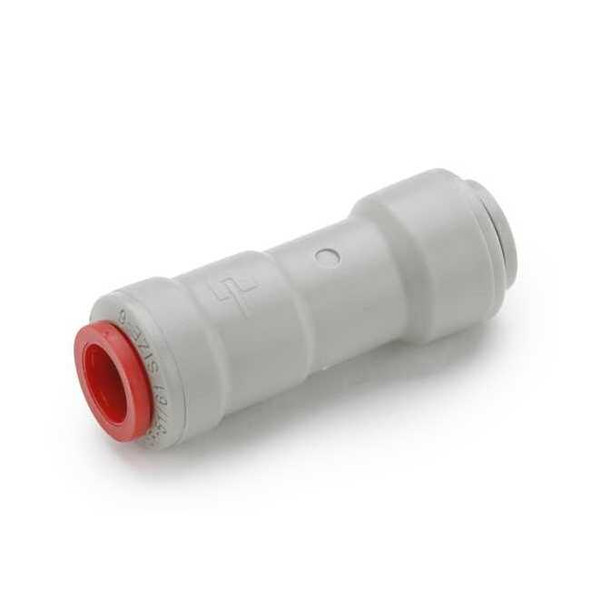

PARKER A5VC5-MG is a 5/16 in. inline ball check valve with push-to-connect ends on both sides. It is configured for one-way flow applications and reverse-flow restriction in systems using compatible fluids, including beer, dyes, water, and . The acetal check mechanism, EPDM seal and seat, and full-flow design; cracking pressure: 0.33 psi; push-to-connect ends for inline installation in horizontal or vertical mounting orientations. Key Features: Valve type: Inline ball check valve with single-flow design. Connection size and style: 5/16 in. push-to-connect x push-to-connect connections. Body material: Acetal resin copolymer. Check mechanism material: Acetal. Seal and seat material: EPDM. Cracking pressure: 0.33 psi. Pressure rating: 145 psi maximum operating pressure; 150 psi maximum water pressure. Temperature range: 34 to 150 degrees F. Mounting orientation: Horizontal or vertical. Certifications and standards: NSF 51, NSF 61, , RoHS. Overall length: 2.11 in. Valve series: Truseal.
