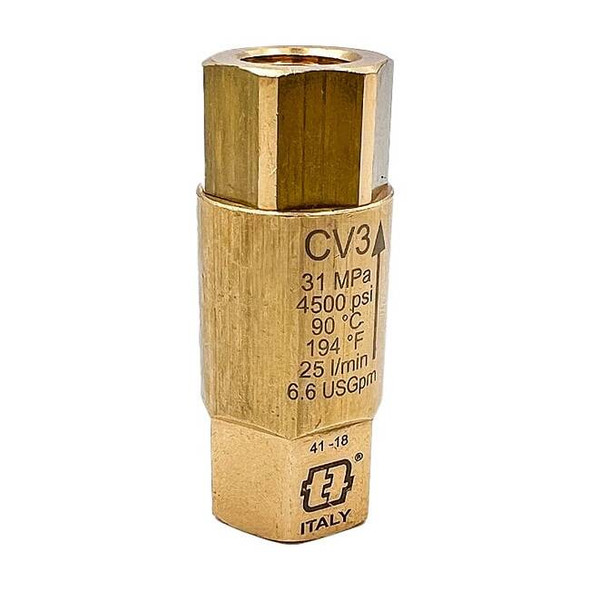

Mecline CV3-40012

MECLINE CV3-40012 is an inline spring piston check valve for water service in high-pressure piping systems. It permits flow in one direction and closes automatically to reduce reverse flow. This 1/2 in valve has a brass body with Buna-N and stainless steel components, a full-flow design, and a 1.5 psi cracking pressure. It may be mounted horizontally or vertically and is rated for operating temperatures from 40 to 194 degrees F. Key Features: Valve type: Inline spring piston check valve. Connection size and type: 1/2 in female NPT x female NPT. Body and internal materials: Brass body with 316 stainless steel check mechanism, stainless steel seat, stainless steel spring, and Buna-N seal. Maximum operating pressure: 5,800 psi. Flow rate: 21 gpm. Mounting: Horizontal or vertical installation. Dimensions: 3.03 in overall length; 1 11/32 in height and width; 1 3/16 in hex size. Additional specifications: Full-flow design; silent check: standard.
