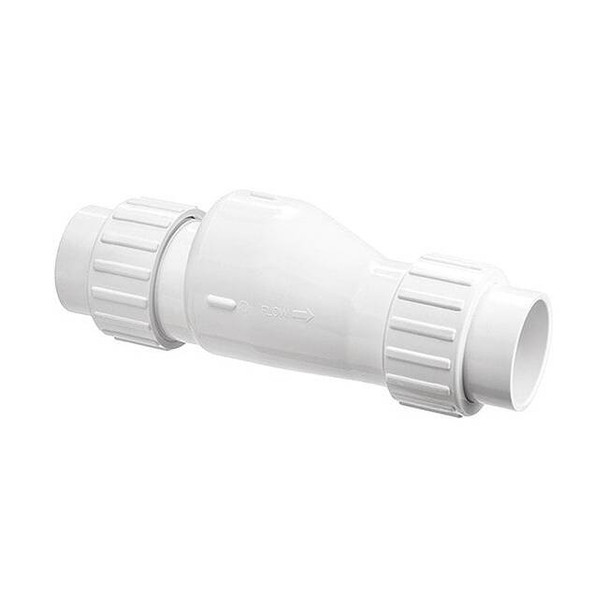

Magic B-0823-15

MAGIC B-0823-15 is a 1-1/2 in silent check valve with an inline PVC body and slip x slip socket connections for backwater and sanitary service. It features a single-flow design, a 0.5 psi cracking pressure, and a spring-assisted check mechanism for flow reversal applications. The valve can be mounted horizontally or vertically. Key Features: Valve type: Silent check valve with inline body design Size: 1-1/2 in nominal valve size with 1-1/2 in connection size on both ends Connections: Female socket ends, slip x slip Body material: PVC Check mechanism: Swing mechanism with 316 stainless steel check mechanism and spring Seal and seat materials: Buna-N seal and PVC seat Flow rating: 100 gpm Pressure ratings: 150 psi operating pressure; 150 psi maximum water pressure at 72 Degrees F; 150 psi maximum pressure at 73 Degrees F Temperature range: 35 Degrees F to 120 Degrees F Mounting: Horizontal or vertical Full flow: Yes Dimensions: 3.25 in overall length, 9 in overall height, 3-1/4 in width Standards: ASTM B62
